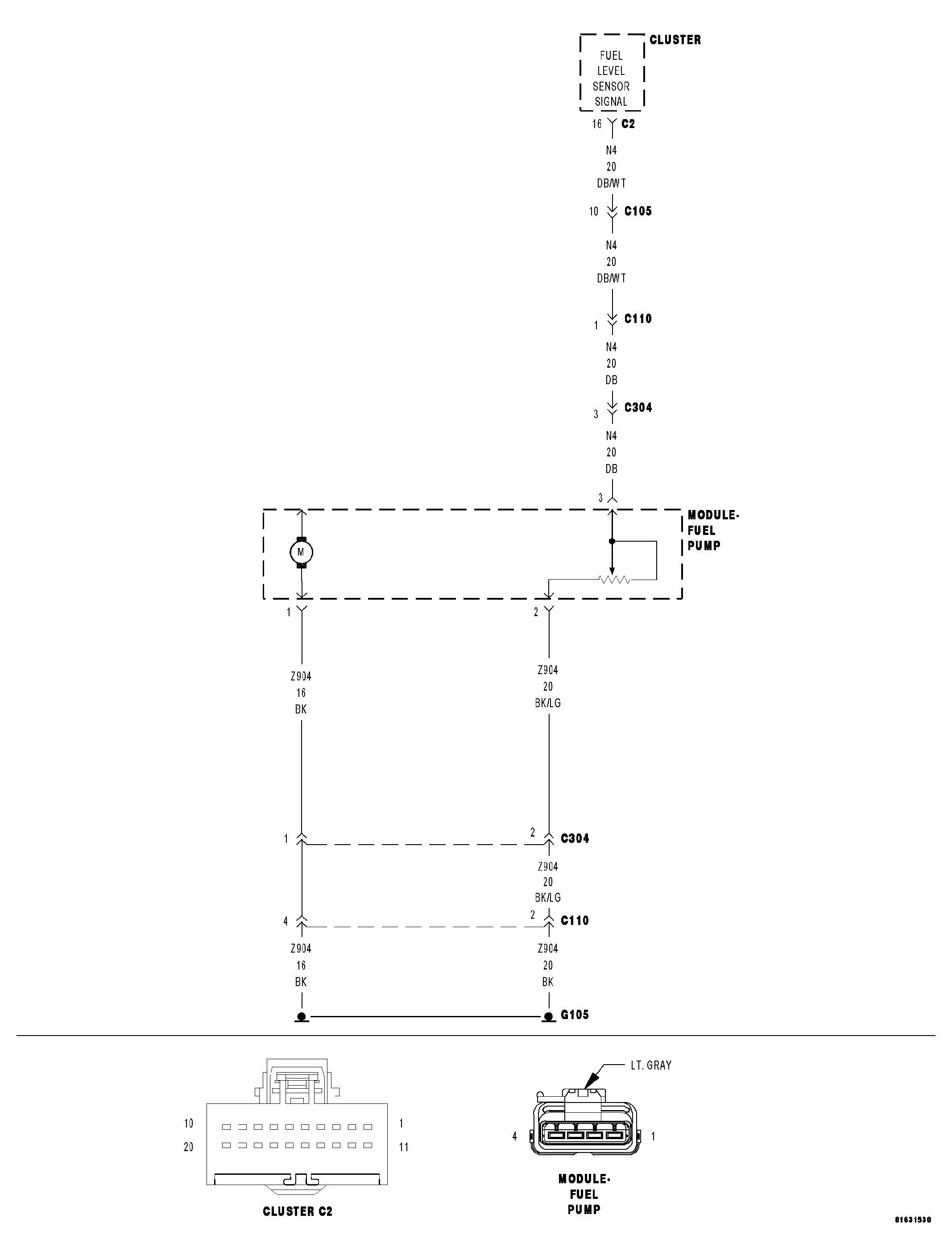

Home >> Chrysler >> 2007 >> PT Cruiser Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0340 To P050B >> P0461-Fuel Level Sensor 1 Performance >> Circuit Schematic
