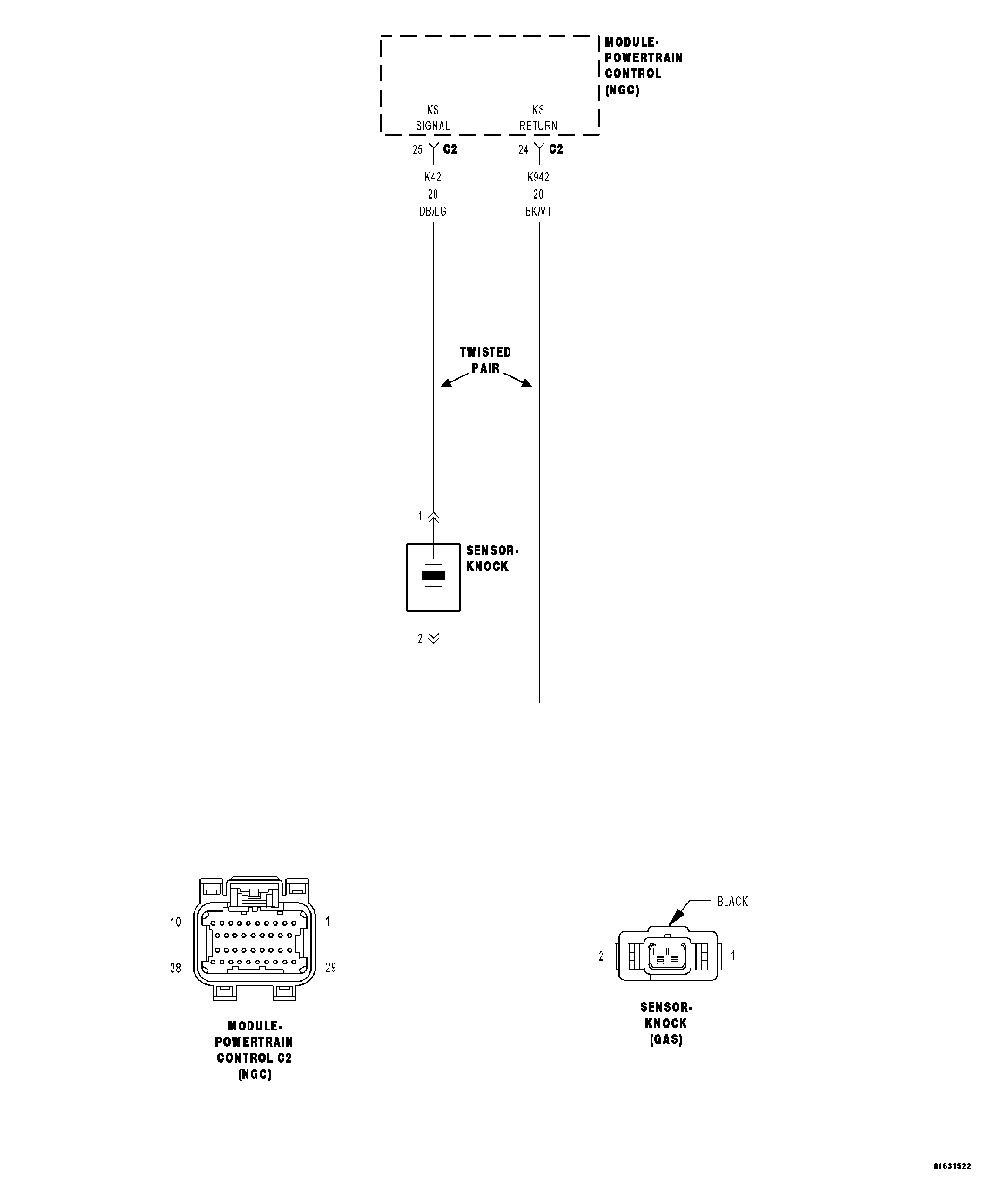

Home >> Chrysler >> 2007 >> PT Cruiser Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0129 To P0339 >> P0325-Knock Sensor 1 Circuit >> Circuit Schematic
