Throttle Position Sensor (TPS) - 2.4L

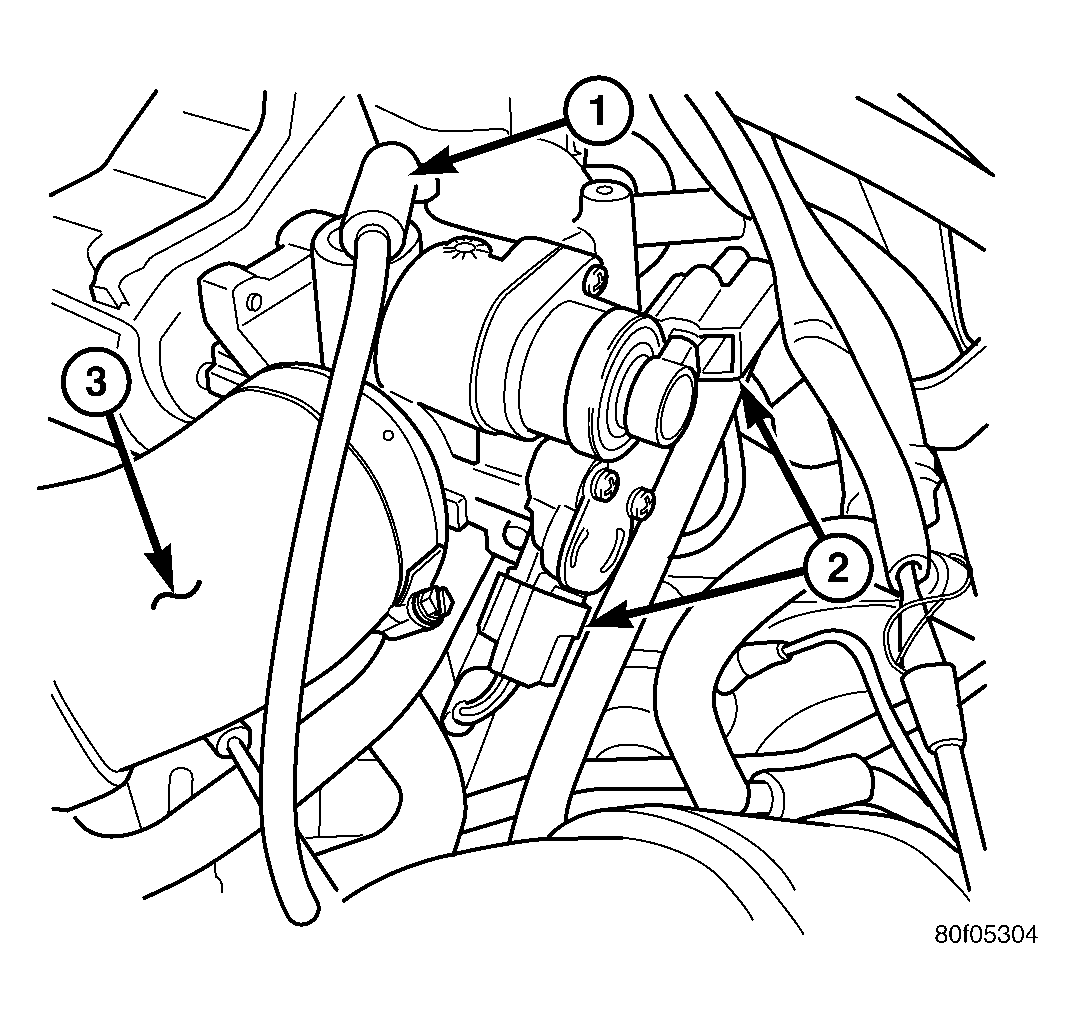

Fig 1: Locating Throttle Position Sensor, Idle Air Control Motor & PCM

Courtesy of CHRYSLER LLC

The throttle position sensor attaches to the side of the throttle body (1).

Fig 2: Throttle Body Connections - 2.4L Turbo

Courtesy of CHRYSLER LLC

1. Remove the air cleaner lid and makeup air hose. Loosen the clamp and relocate assembly.
2. Remove the negative battery cable.
3. Disconnect electrical connector from the throttle position sensor (2).
4. Remove throttle position sensor mounting screws.
5. Remove throttle position sensor.
