Fuel Pressure Sensor

The fuel pressure sensor monitors and passes on the current rail pressure to the control module. See Fig 1. The non-constant system pressure influences the position of the sensor diaphragm which alters the sensors electrical resistance.

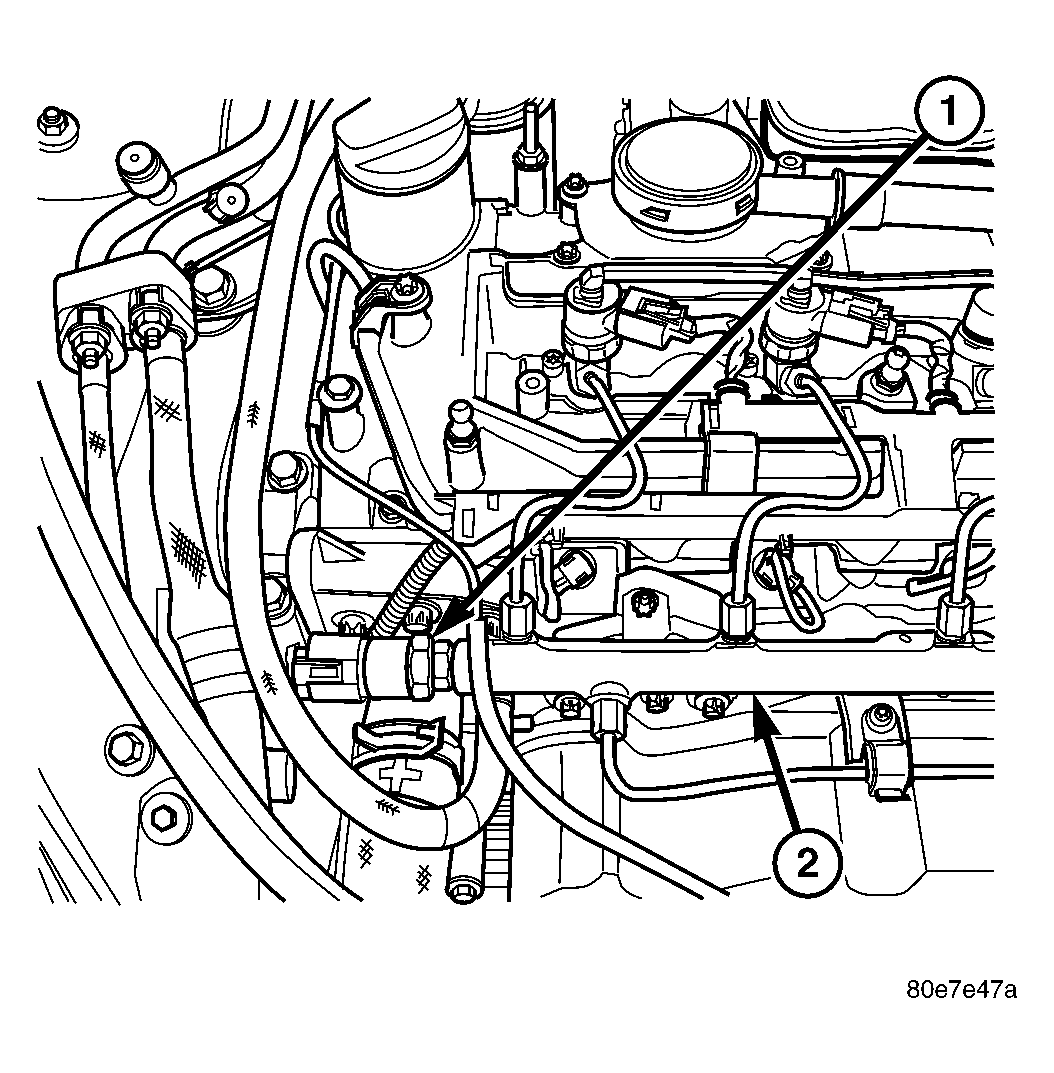

Fig 1: Fuel Rail And Fuel Pressure Sensor Locations

Courtesy of CHRYSLER LLC
