Fuel Injector

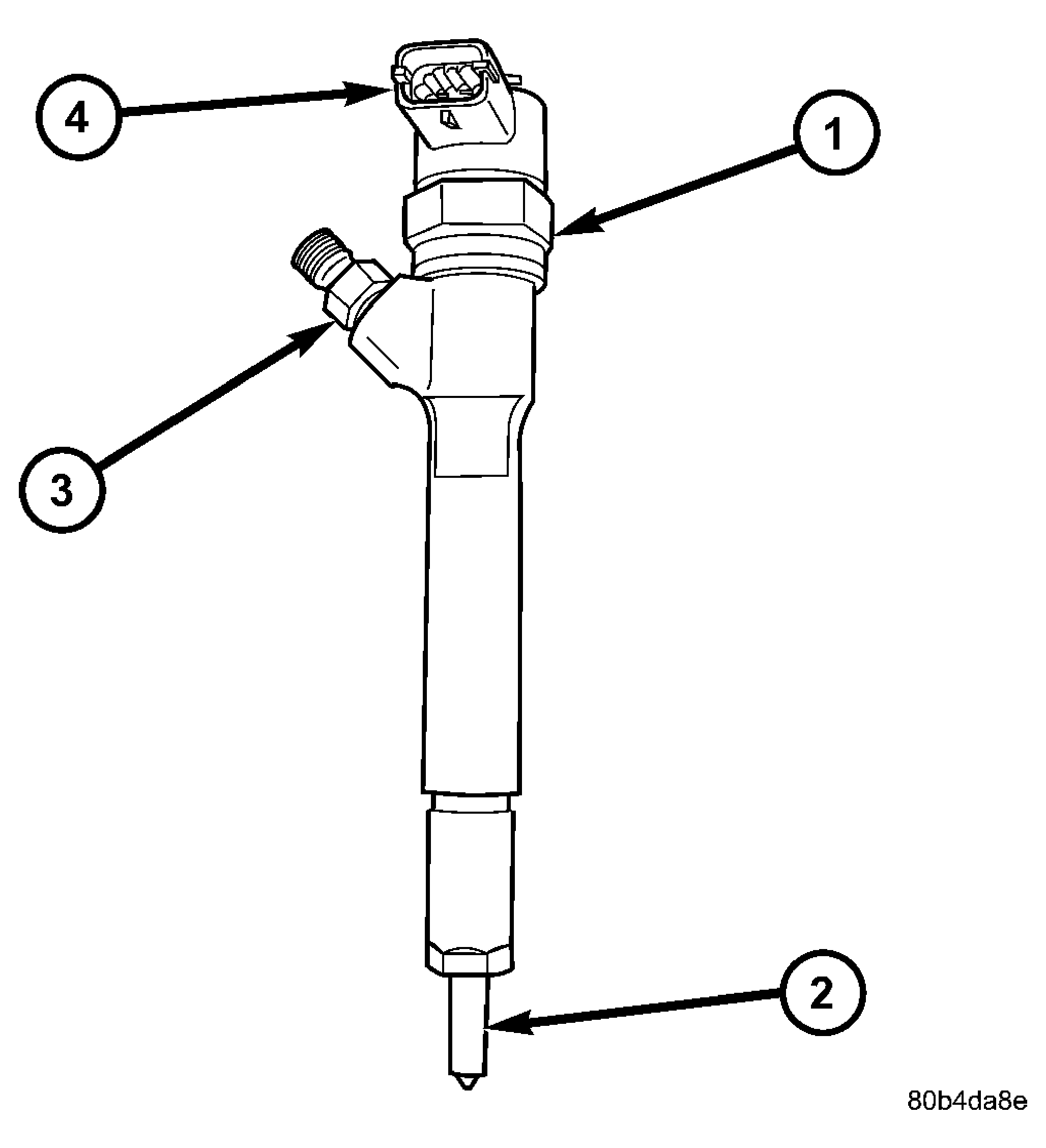

There are individual fuel injectors for all four cylinders. These fuel injectors are used to spray fuel into the combustion chamber. See Fig 1.
| 1 - FUEL INJECTOR |
| 2 - NOZZLE |
| 3 - FUEL INLET FITTING |
| 4 - ELECTRICAL CONNECTION |
There are individual fuel injectors for all four cylinders. These fuel injectors are used to spray fuel into the combustion chamber. See Fig 1.
| 1 - FUEL INJECTOR |
| 2 - NOZZLE |
| 3 - FUEL INLET FITTING |
| 4 - ELECTRICAL CONNECTION |
