Heated Oxygen Sensor (O2 Sensor) - Pcm Input

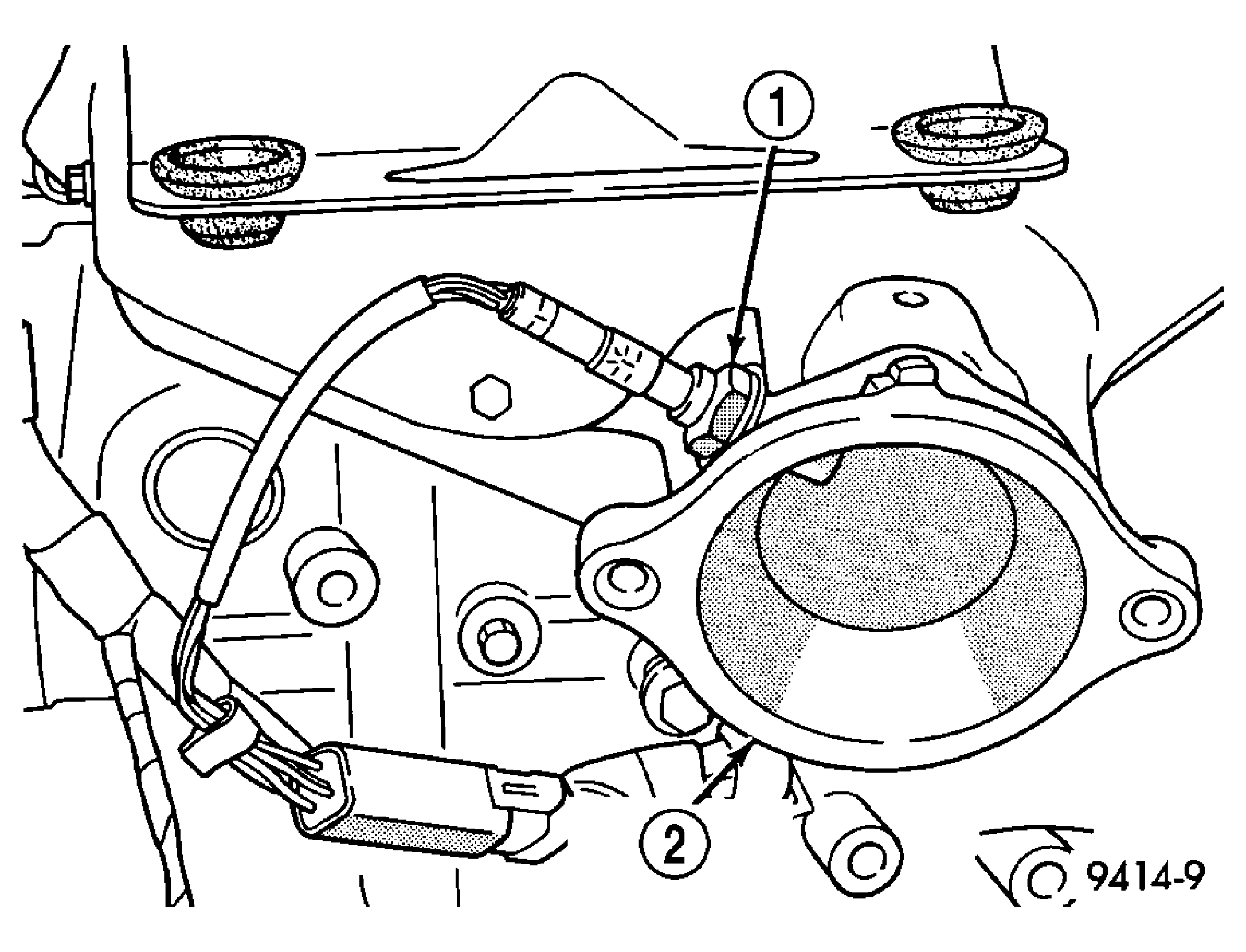

Fig 1: Upstream Heated Oxygen Sensor 1/1

Courtesy of CHRYSLER LLC

1 - OXYGEN SENSORS

2 - EXHAUST MANIFOLD

The upstream oxygen sensor threads into the outlet flange of the exhaust manifold.

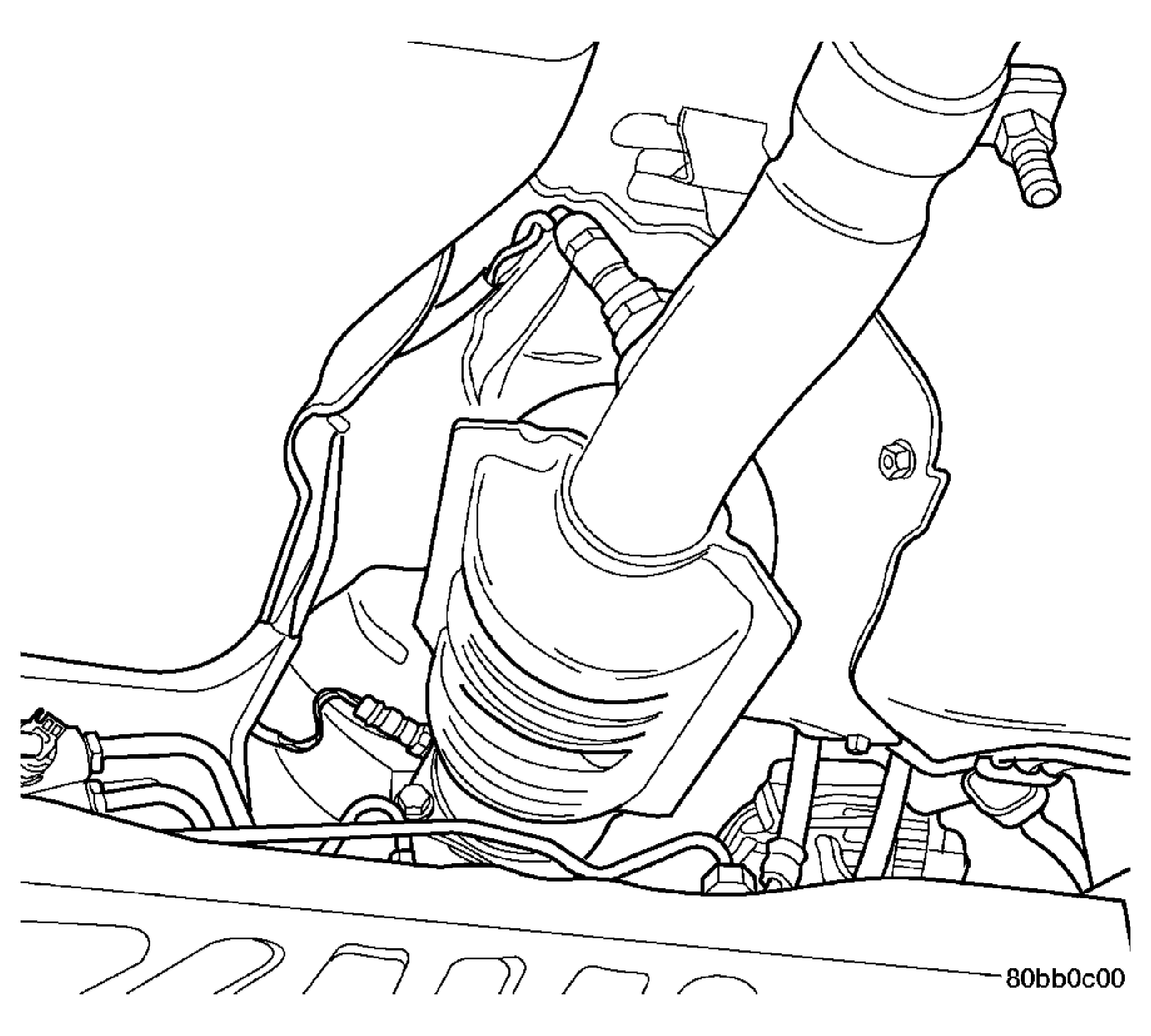

Fig 2: Downstream Heated Oxygen Sensor 1/2

Courtesy of CHRYSLER LLC

The downstream heated oxygen sensor threads into the system depending on emission package.
