Generator - 2.4L Turbo

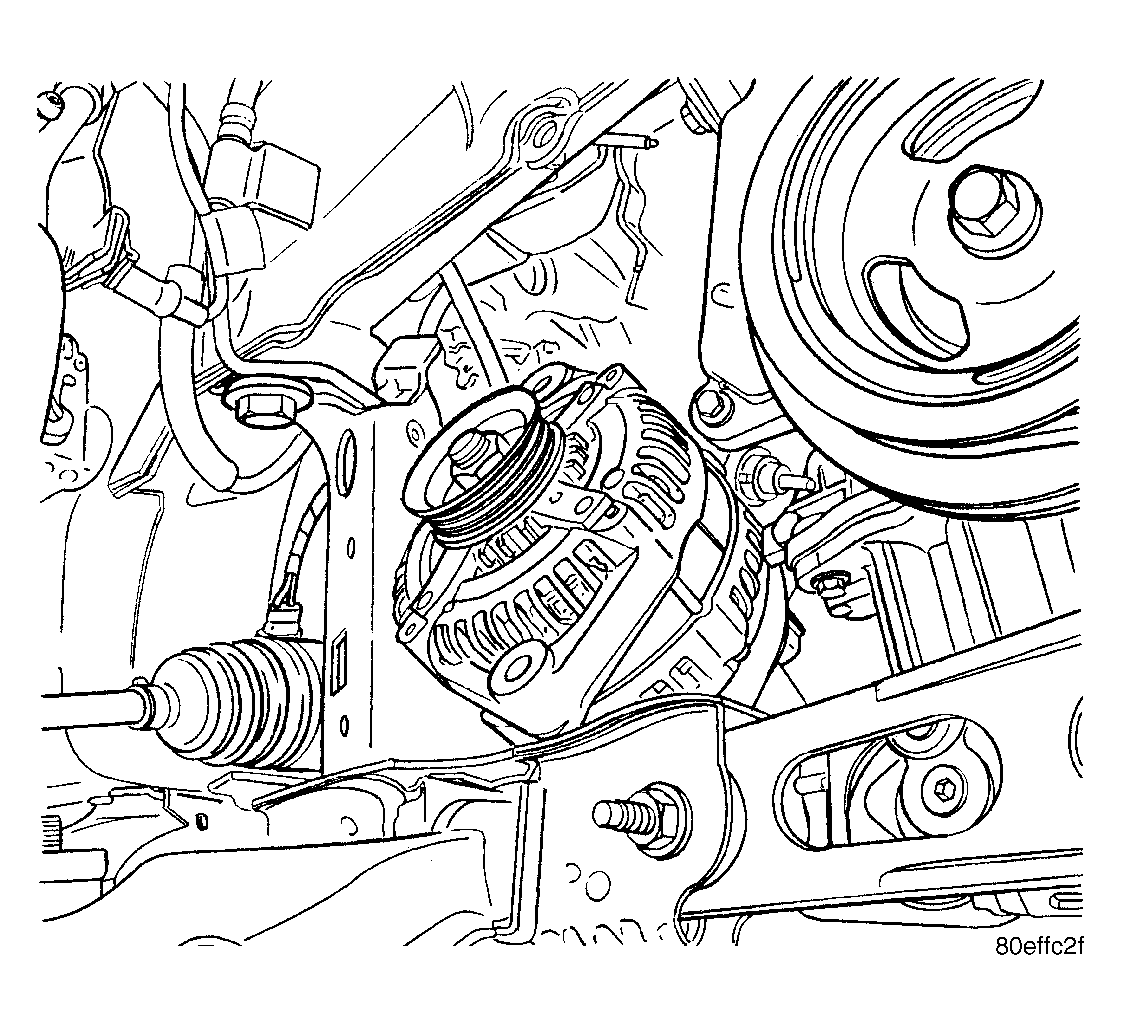

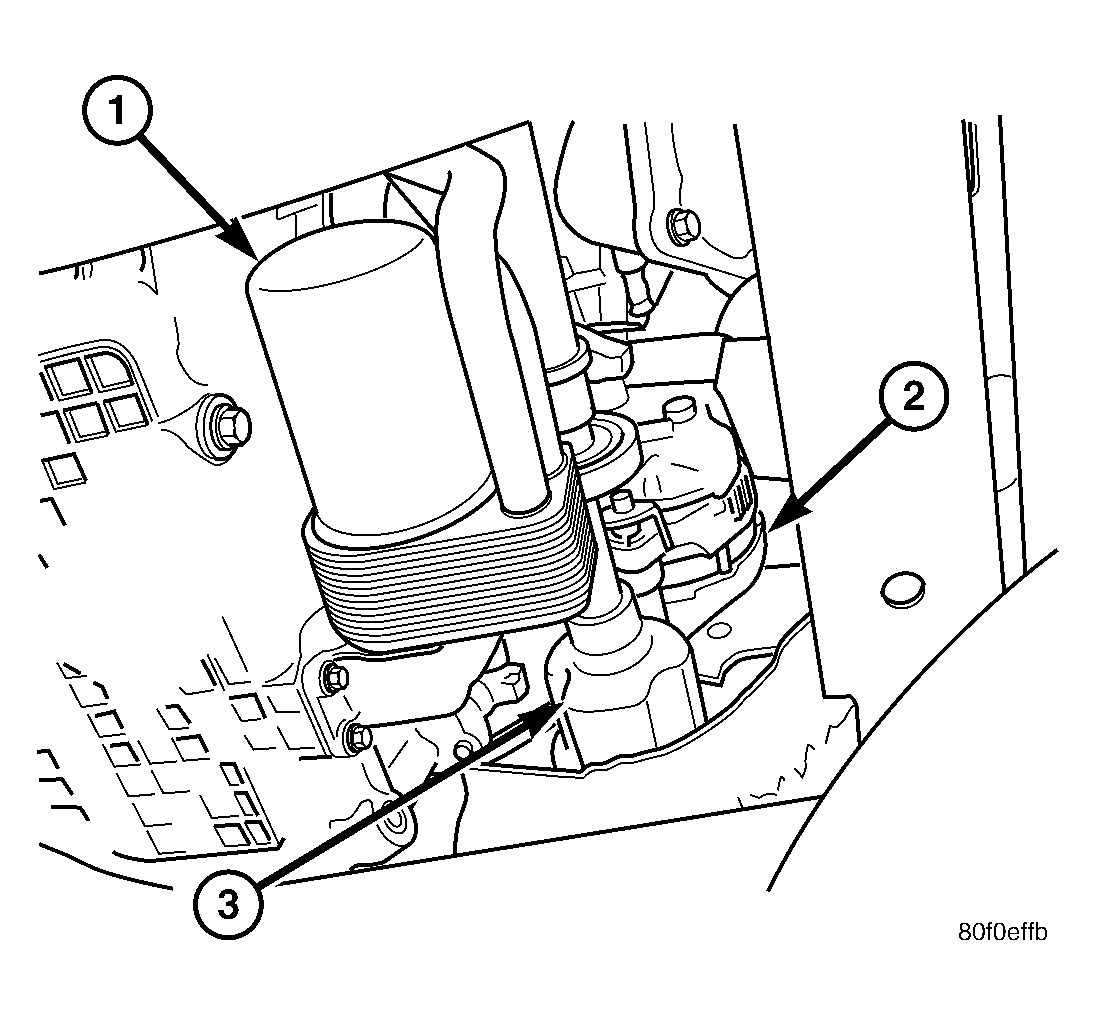

Fig 1: View Of Oil Filter, Axleshaft & Generator - 2.4L Turbo

Courtesy of CHRYSLER LLC

The generator is located above the oil filter and axle shaft.

1. Disconnect the negative battery cable.

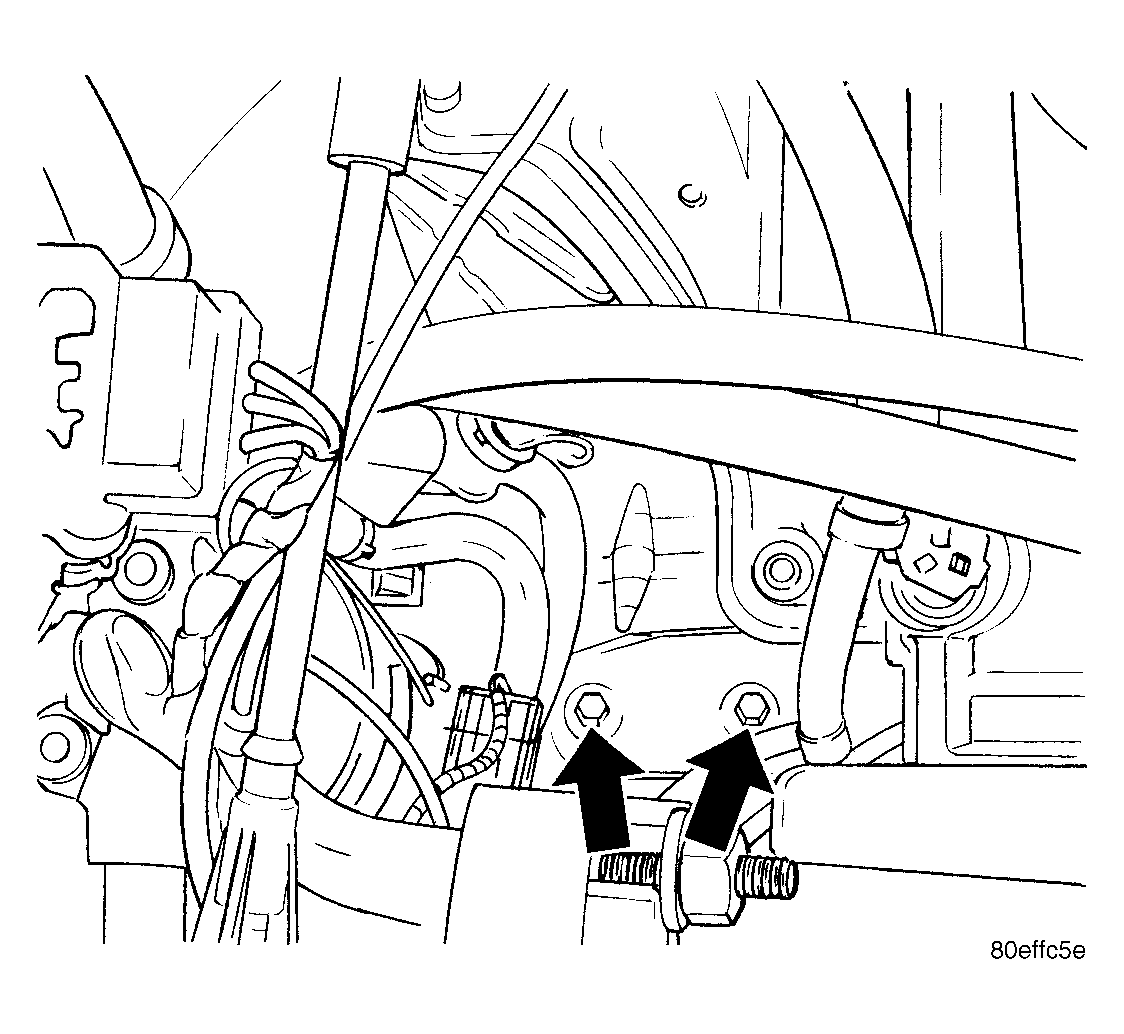

   Fig 2: Generator Heat Shield

   Courtesy of CHRYSLER LLC
2. Remove the 2 bolts from the top of the heat shield on the generator.

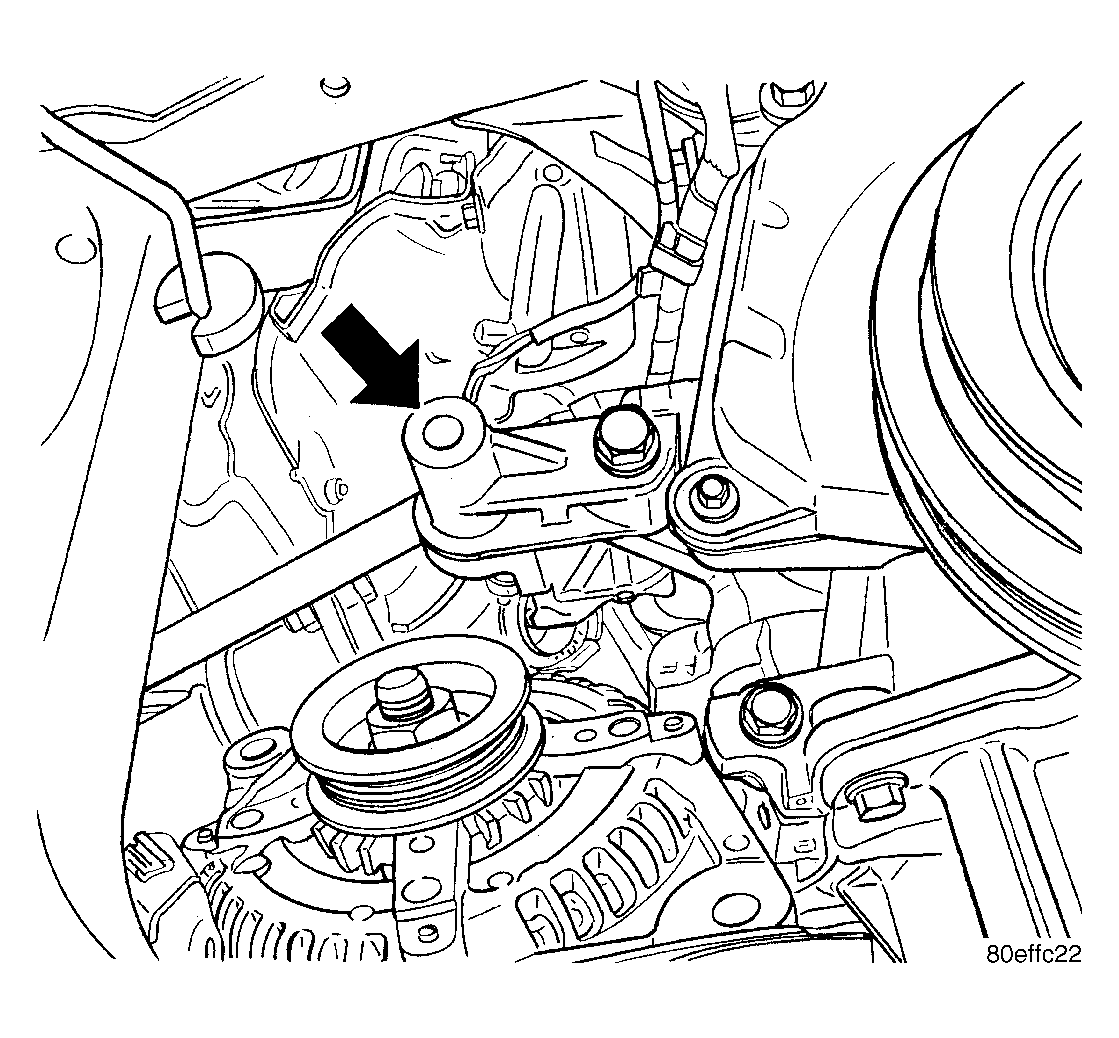

   Fig 3: Generator T-Bolt Locknut & Adjustment Bolt

   Courtesy of CHRYSLER LLC
3. Remove nut from the upper T-bolt adjustment bracket.
   Fig 4: Accessory Drive Splash Shield

   Courtesy of CHRYSLER LLC

   1 - ACCESSORY DRIVE BELT SPLASH SHIELD

4. Raise vehicle and support.
5. Remove the right front wheel.
6. Remove the accessory drive splash shield.
7. Remove the lower heat shield bolt.
8. Remove the generator heat shield.
   Fig 5: Identifying Battery (+) Connector and Field Connector

   Courtesy of CHRYSLER LLC

   1 - FIELD CONNECTOR

   2 - BATTERY CONNECTION

9. Unplug the field circuit from the generator.
10. Remove the B+ terminal nut and wire.
11. Loosen the accessory drive belt T-bolt.
    Fig 6: View Of Pencil Strut Mounting

    Courtesy of CHRYSLER LLC

    1 - NUT

    2 - PENCIL STRUT

    3 - NUT

    4 - FLAT WASHER

    5 - LOWER TORQUE STRUT

12. Remove the pencil strut.
    Fig 7: Generator Lower Pivot Bolt

    Courtesy of CHRYSLER LLC

    1 - LOWER PIVOT BOLT

13. Loosen the lower generator pivot bolt.

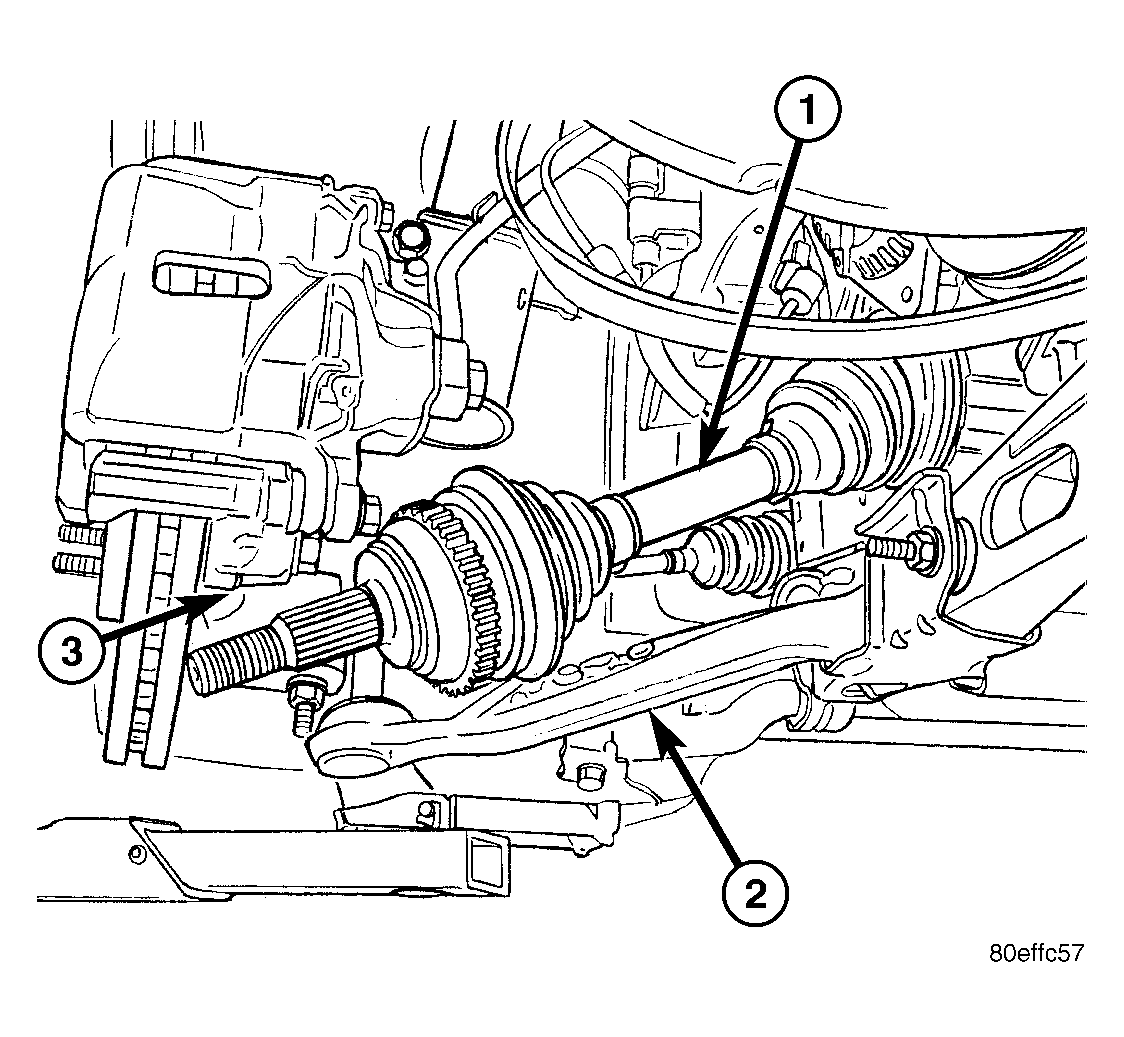

    Fig 8: Removing/Installing Axle Shaft

    Courtesy of CHRYSLER LLC

    1 - Axle Shaft

    2 - Lower Control Arm

    3 - Steering Knuckle

14. Remove the generator belt. Refer to REMOVAL .
15. Remove the axle retaining nut.
16. Remove the lower control arm from the steering knuckle.
17. Remove the 2 bolts for the axle shaft bearing support.
18. Remove the axle shaft assembly. Put a container under the transmission to catch the transmission fluid from the transmission.
    Fig 9: Lower Mounting Bracket

    Courtesy of CHRYSLER LLC
19. Remove the generator from the lower mounting bracket and set generator to the side.
20. Remove the lower mounting bracket for the generator.
    Fig 10: Removing/Installing Generator

    Courtesy of CHRYSLER LLC
21. Remove generator through the axle shaft hole.
