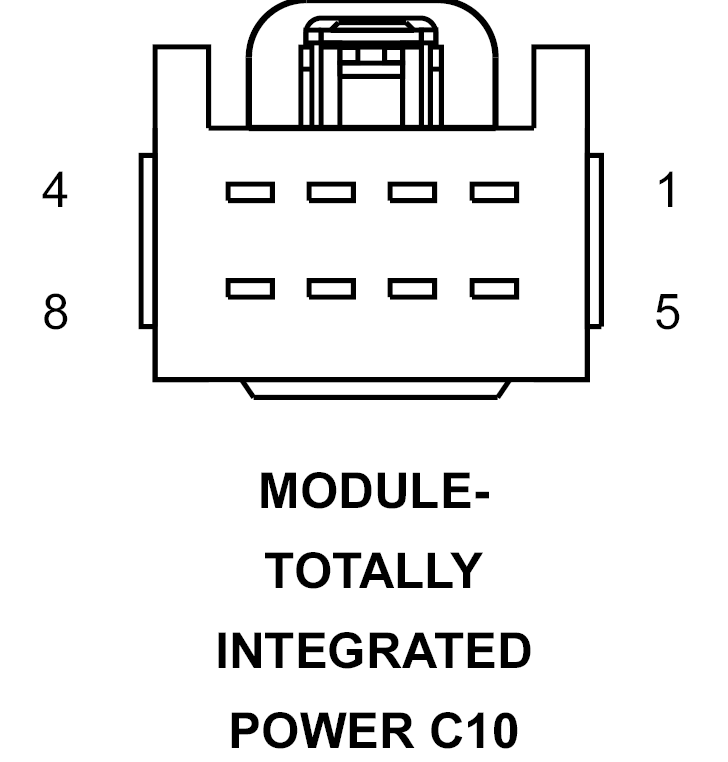

Totally Integrated Power Module Connector End View (C10)
MODULE-TOTALLY INTEGRATED POWER C10 - 8-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
T16 16YL/OR |
TRANSMISSION CONTROL OUTPUT |
| 4 |
- |
- |
| 5 |
K343 16BR/YL |
FUSED ASD RELAY OUTPUT |
| 6 |
K344 16BR/GY |
FUSED ASD RELAY OUTPUT |
| 7 |
C3 20DB/YL |
A/C CLUTCH CONTROL OUTPUT |
| 8 |
T40 16YL/TN |
STARTER RELAY OUTPUT |
