Output Speed Sensor Connector End View

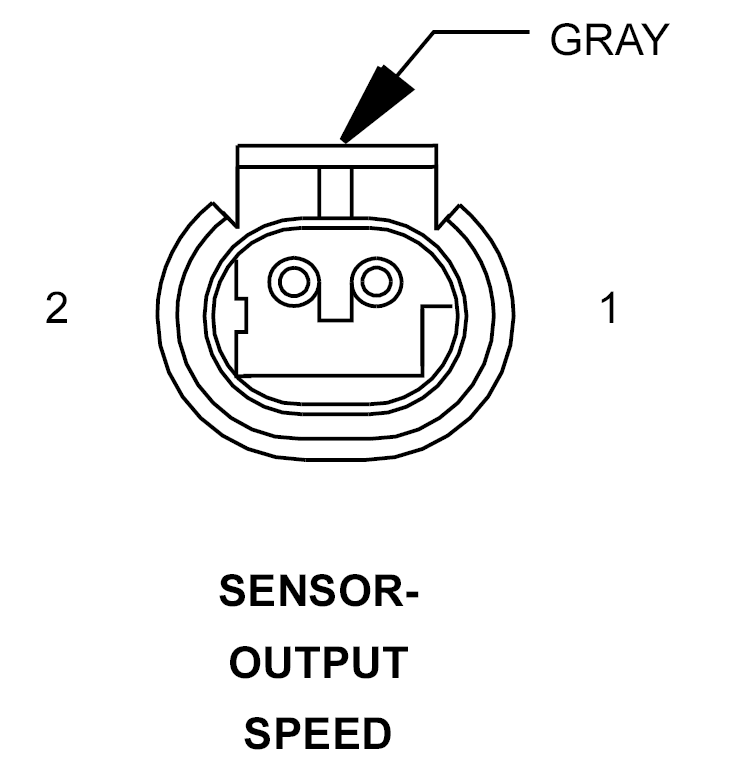

SENSOR-OUTPUT SPEED - GRAY 2-WAY

GPT780295Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T13 20DB/BK SPEED SENSOR GROUND
2 T14 20LG/WT OUTPUT SPEED SENSOR SIGNAL
