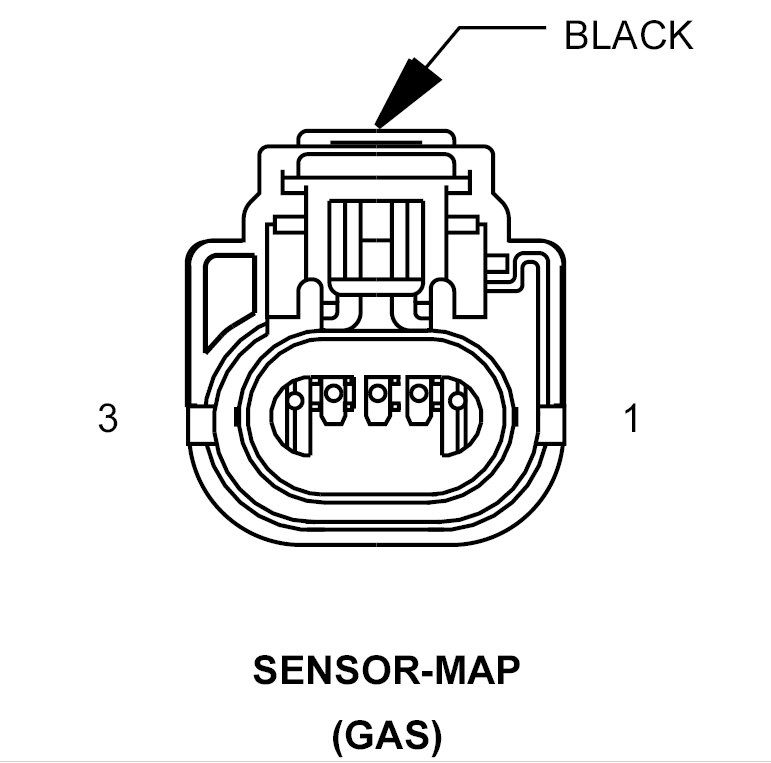

Map Sensor (Gas) Connector End View
SENSOR-MAP - BLACK 3-WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K1 20DG/RD |
MAP SIGNAL |
| 2 |
K901 20DB/VT |
MAP GROUND (1.6L) |
| 2 |
K900 20BK/LB |
SENSOR GROUND (EXCEPT 1.6L) |
| 3 |
K811 18VT/WT |
MAP 5 VOLT SUPPLY (1.6L) |
| 3 |
F855 20OR |
5 VOLT SUPPLY (EXCEPT 1.6L) |
