Left Side Impact Sensor 1 Connector End View
Left Side Impact Sensor 1 Connector End View

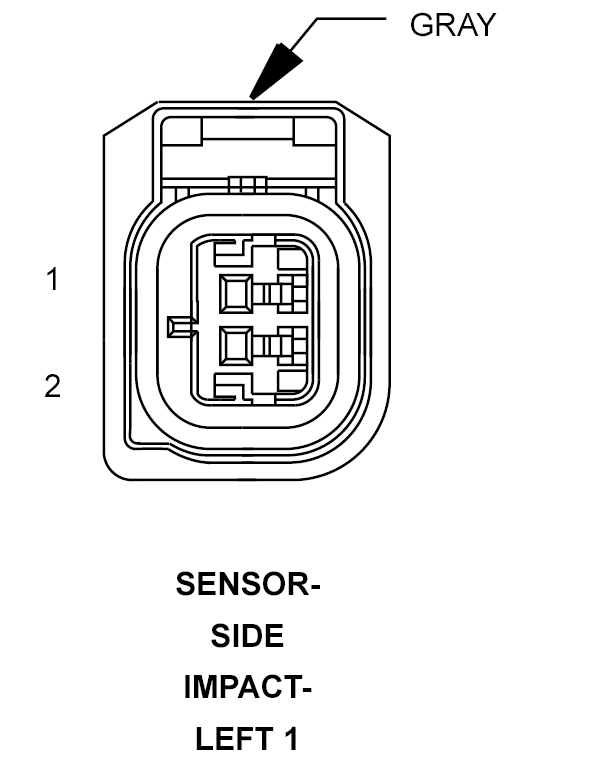

SENSOR-SIDE IMPACT-LEFT 1 - GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R15 20LG/BR
LEFT SIDE IMPACT SENSOR 1 GROUND
2
R13 20LG/TN
LEFT SIDE IMPACT SENSOR 1 SIGNAL
Courtesy of CHRYSLER CORP.
