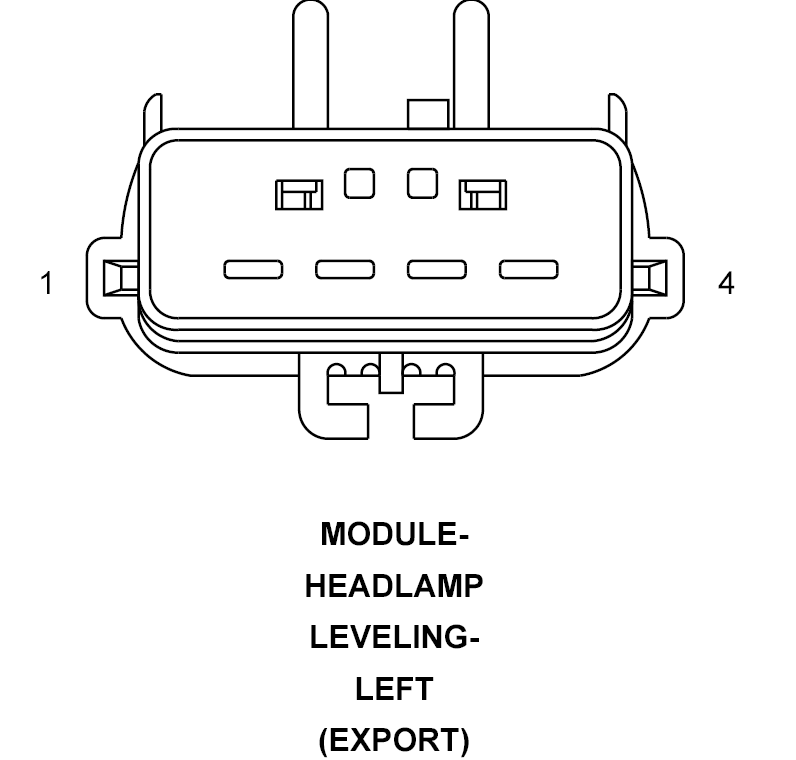

Left Headlamp Leveling Module (Export) Connector End View
MODULE-HEADLAMP LEVELING-LEFT - 4-WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L7 20WT/YL |
HEADLAMP SWITCH OUTPUT |
| 2 |
Z902 18BK |
GROUND |
| 3 |
L131 20WT/LG |
HEADLAMP LEVEL SENSOR SIGNAL |
| 4 |
L7 20WT/YL |
HEADLAMP SWITCH OUTPUT |
