Ignition Switch Connector End View

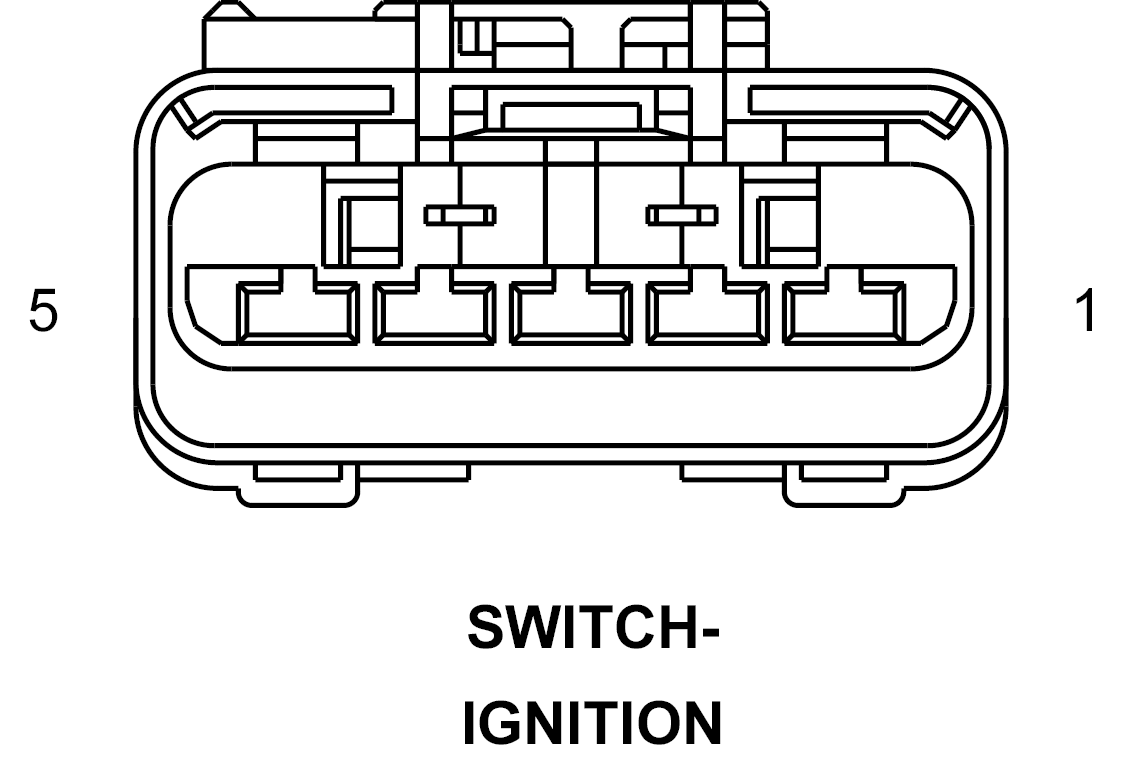

SWITCH-IGNITION - 5-WAY

GPT780358Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G900 20VT/OR IGNITION SWITCH SENSE RETURN
2 G20 20VT/BR IGNITION SWITCH SENSE
3 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
4 F961 20PK/LB IGNITION SWITCH OUTPUT (START)
5 A952 20RD FUSED B(+)
