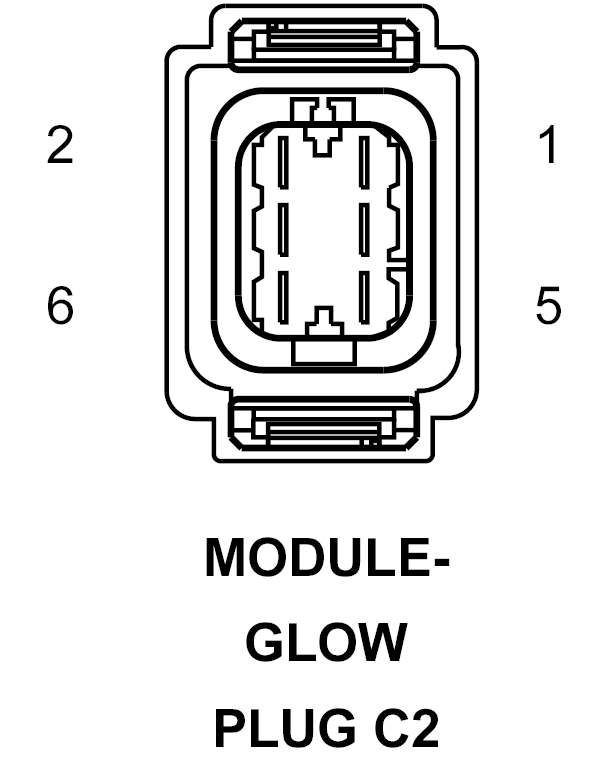

Glow Plug Module Connector End View (C2)
MODULE-GLOW PLUG C2 - 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A202 16RD/WT |
GLOW PLUG NO. 1 CONTROL |
| 2 |
A203 16RD |
GLOW PLUG NO. 2 CONTROL |
| 3 |
A204 16RD/YL |
GLOW PLUG NO. 3 CONTROL |
| 4 |
A208 16RD/OR |
GLOW PLUG NO. 4 CONTROL |
| 5 |
- |
- |
| 6 |
- |
- |
