Glow Plug Module Connector End View (C1)

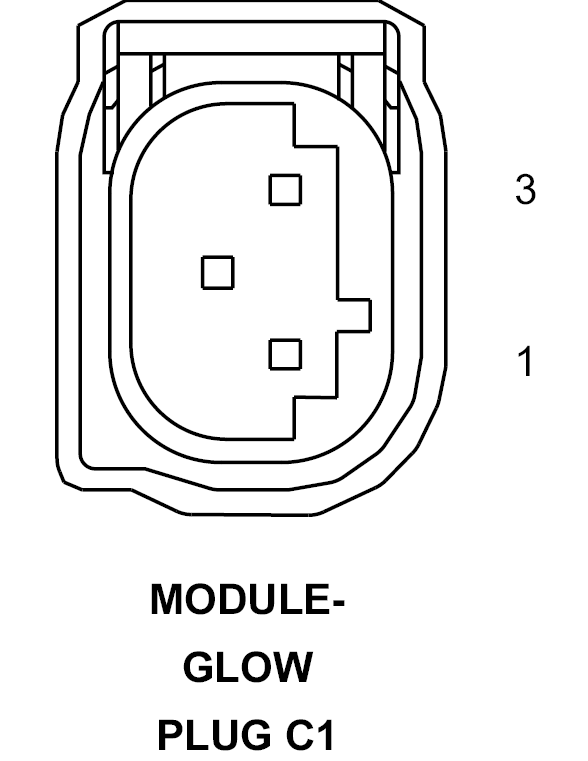

MODULE-GLOW PLUG C1 - 3-WAY

GPT780207Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z902 20BK GROUND
2 K330 20LB/BR GLOW PLUG MODULE CONTROL
3 - -
