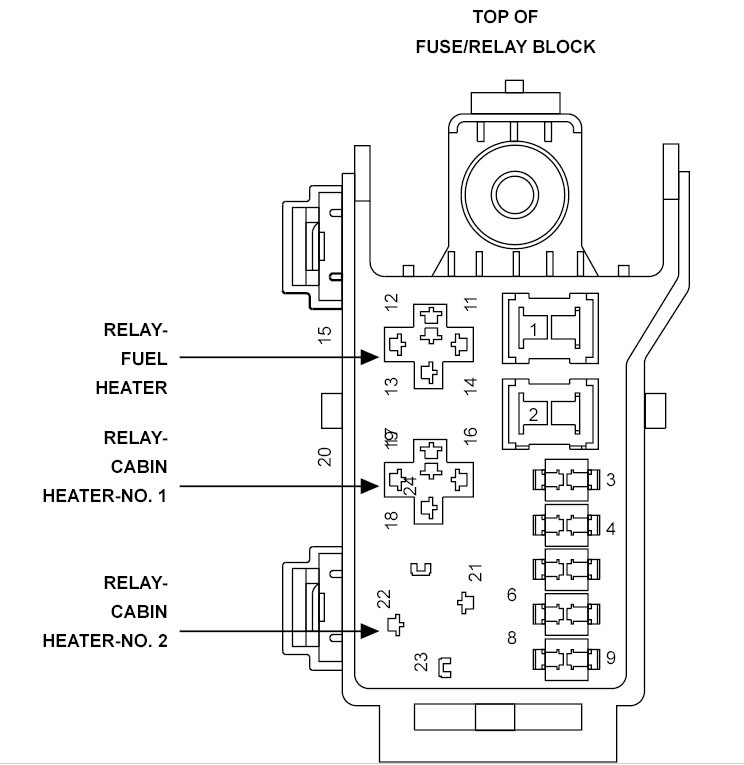

Fuse Block/Relay Block (Diesel) Connector End View
FUSE/RELAY BLOCK (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A284 8RD/LB |
FUSED B(+) |
| 2 |
A29 8RD/GY |
FUSED B(+) |
| 3 |
A283 12RD/YL |
FUSED B(+) |
| 4 |
A960 14RD |
FUSED B(+) |
| 5 |
- |
- |
| 6 |
A286 10RD/WT |
FUSED B(+) |
| 7 |
- |
- |
| 8 |
A288 12RD/LB |
FUSED B(+) |
| 9 |
- |
- |
