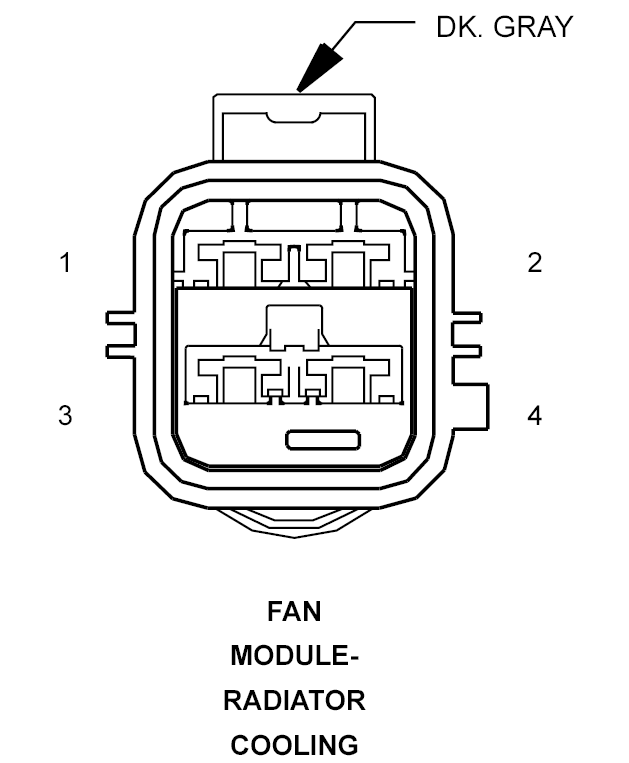

Fan Radiator Cooling Module Connector End View
FAN MODULE-RADIATOR COOLING - DK. GRAY 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A16 10RD/BR |
FUSED B(+) |
| 2 |
N201 20DB/LG |
LOW SPEED RAD FAN CONTROL |
| 3 |
Z903 10BK |
GROUND |
| 4 |
N112 20DB/OR |
HIGH SPEED RAD FAN CONTROL |
