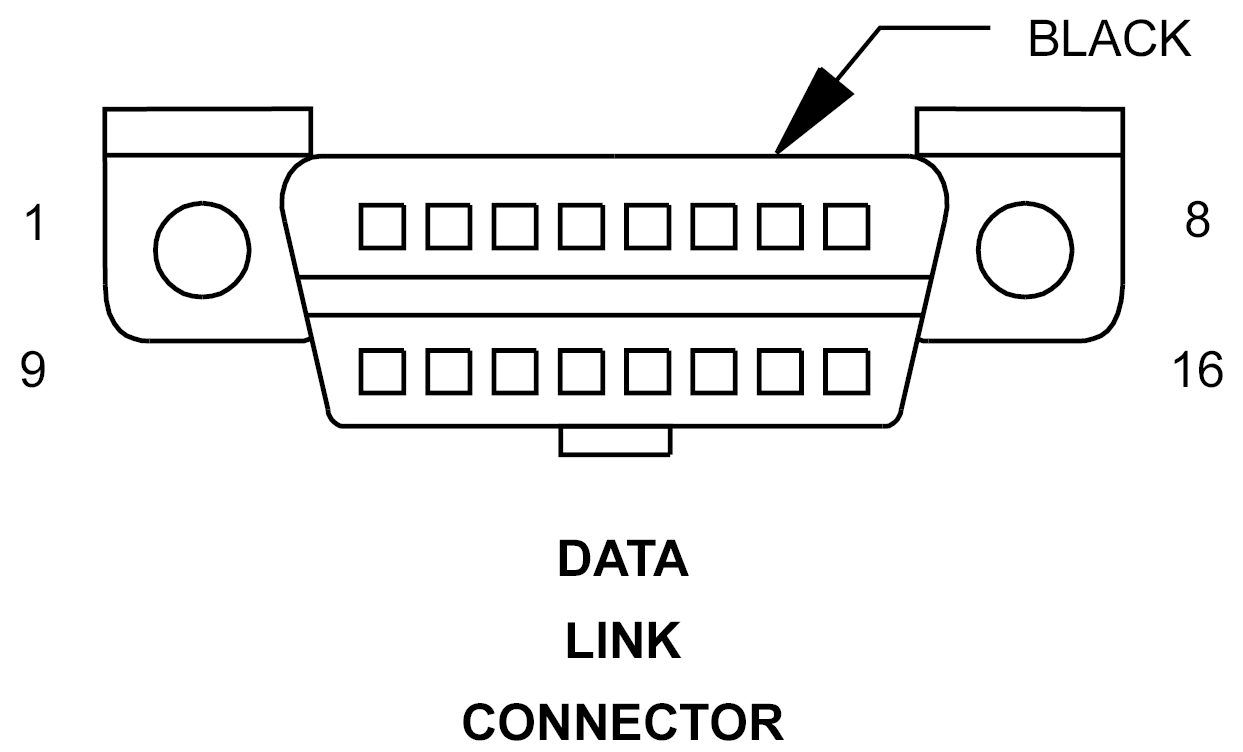

Data Link Connector, Connector End View
DATA LINK CONNECTOR - BLACK 16-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | D25 20WT/VT | PCI BUS (1.6L) |
| 3 | - | - |
| 4 | Z905 18BK | GROUND |
| 5 | Z905 18BK | GROUND |
| 6 | D72 20WT/LB | DIAGNOSTIC CAN C (+) |
| 7 | D223 20PK | SCI TRANSMIT (PCM) (1.6L) |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | D123 20LG | SCI RECEIVE (PCM) (1.6L) |
| 13 | - | - |
| 14 | D71 20WT/DB | DIAGNOSTIC CAN C (-) |
| 15 | - | - |
| 16 | A933 18RD | FUSED B(+) |
