Analog Clock Module Connector End View

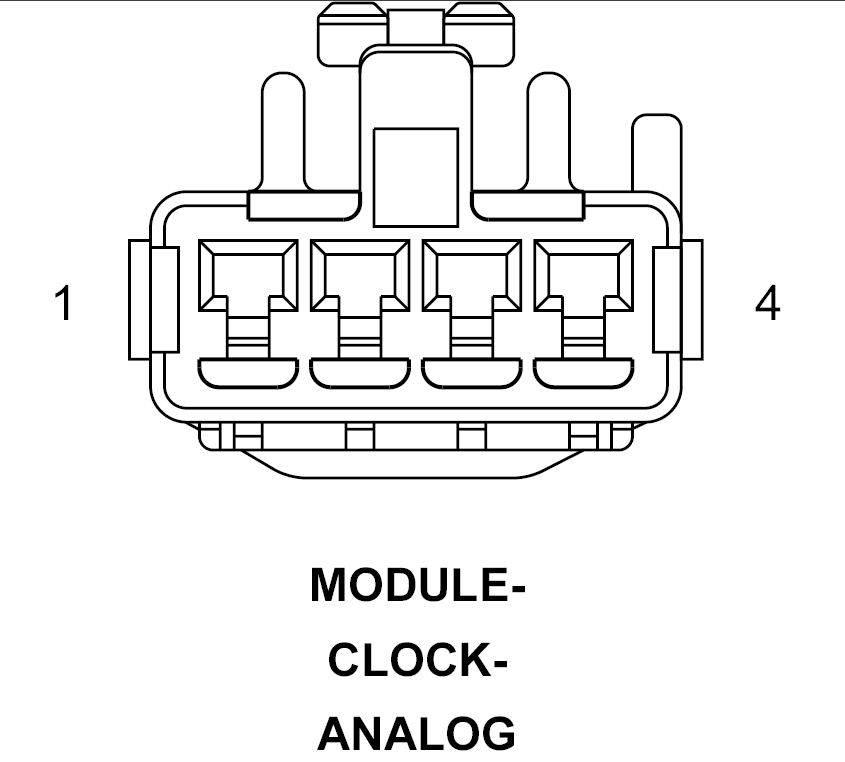

MODULE-CLOCK-ANALOG - 4-WAY

GPT780198Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A411 20RD/DG FUSED B(+) (I.O.D.)
2 Z909 20BK/LG GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 - -
