Cable-Speed Control Servo

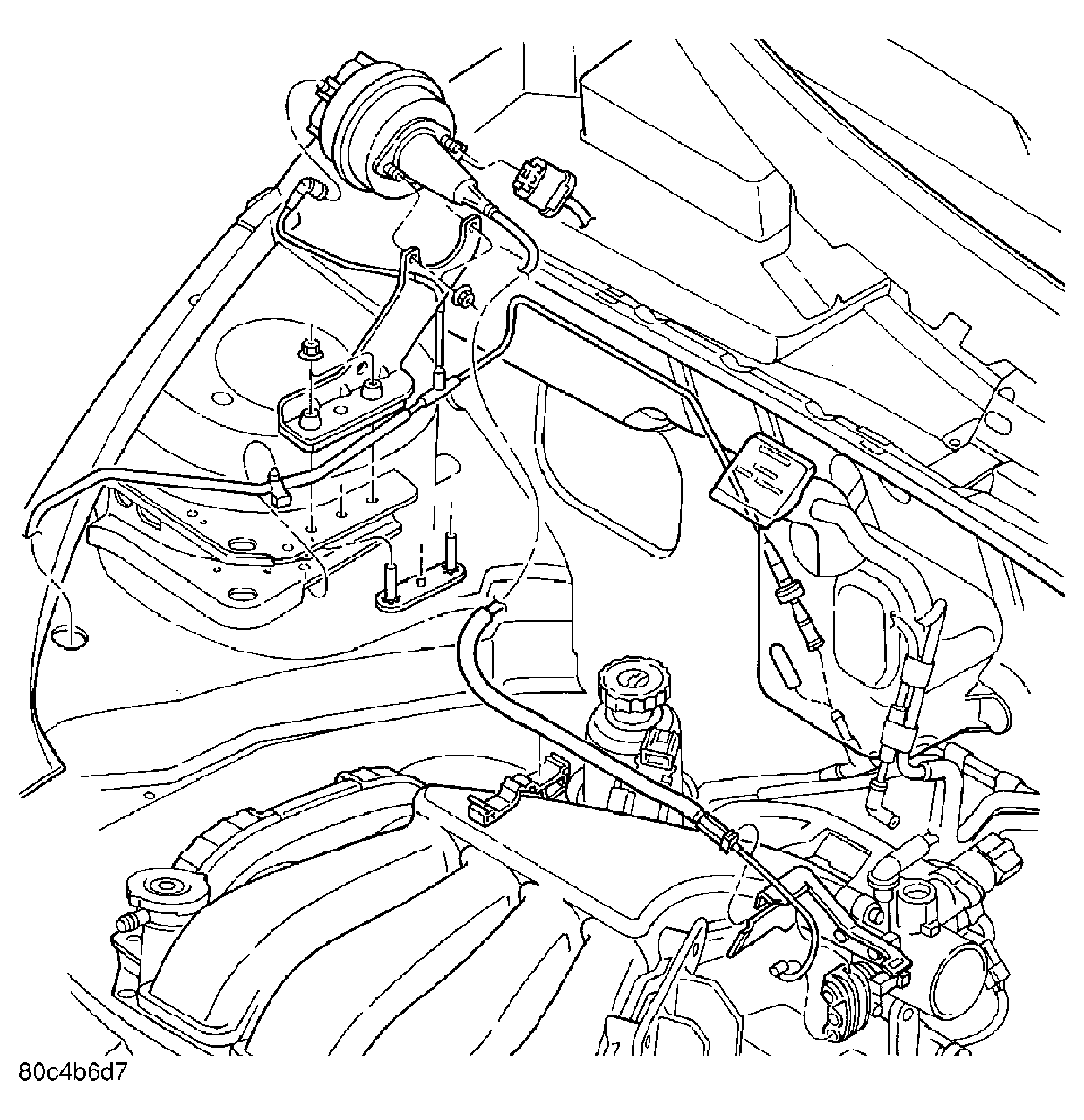

Fig 1: Identifying Speed Control System Components

Courtesy of CHRYSLER LLC

Remove the air cleaner lid and makeup air hose. Refer to REMOVAL .
Remove the negative battery cable.
Remove the engine cover and throttle control shield, if equipped.
Remove two nuts attaching speed control cable and mounting bracket to servo. See Fig 1.
Remove servo from the mounting bracket.
Disconnect electrical connector and vacuum hose.

Fig 2: Cable Retaining Clip
Courtesy of CHRYSLER LLC

1 - HAIRPIN CLIP
Remove retaining clip holding cable to servo.

Fig 3: Throttle Cable Attachment To Throttle Body
Courtesy of CHRYSLER LLC
Remove throttle cable clasp from the throttle body cam. See Fig 3.
Remove speed control cable from throttle cam by sliding clasp out hole used for throttle cable.

Fig 4: Locating Retaining Tabs On Cables
Courtesy of CHRYSLER LLC
Compress the retaining tabs on the cables and slide cables out of bracket. See Fig 4.
