Cable-Speed Control - 2.4L Turbo

Fig 1: Cable Retaining Clip

Courtesy of CHRYSLER LLC

1 - HAIRPIN CLIP

Install the cable.
Install the retaining clip holding cable to servo. See Fig 1.

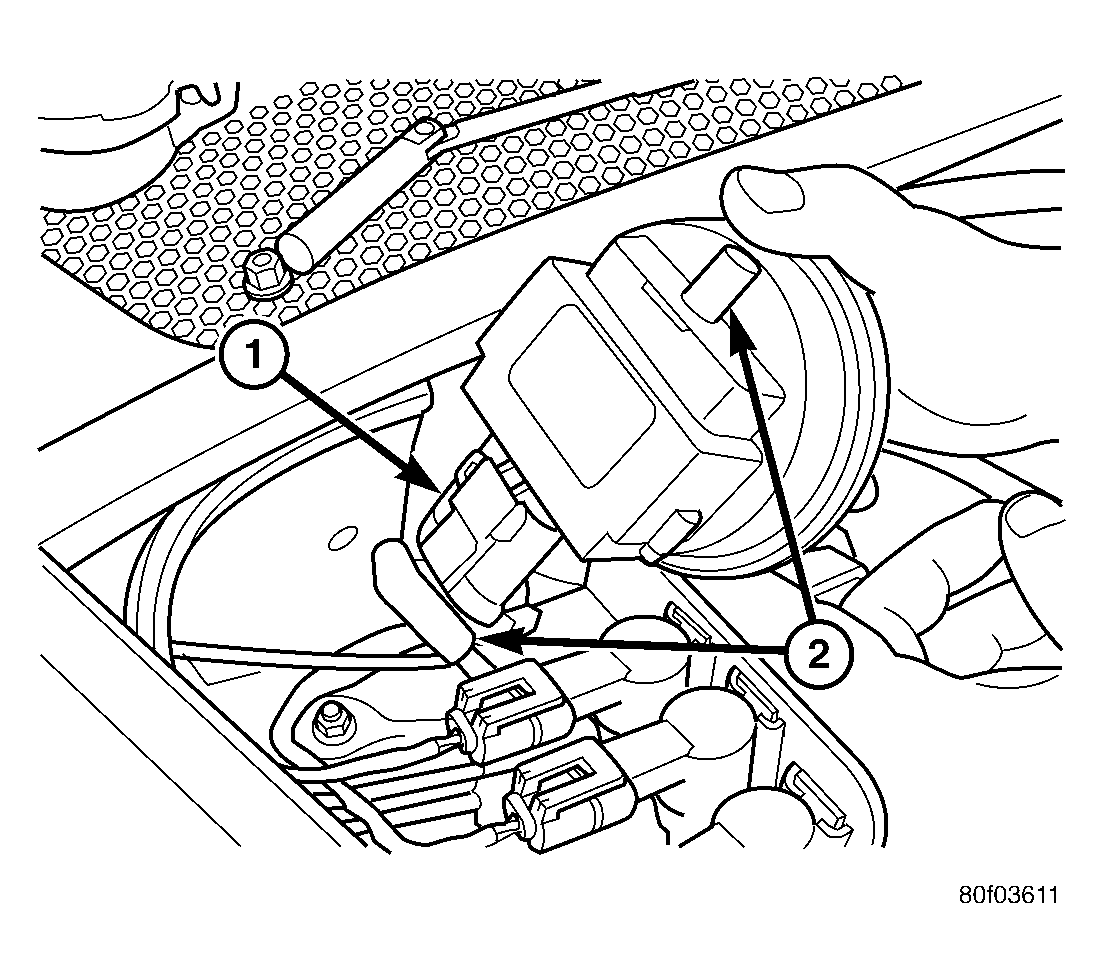

Fig 2: Servo Vacuum & Electrical Connections
Courtesy of CHRYSLER LLC

1 - Electrical Connector

2 - Vacuum Line and Nipple
Install the vacuum line to the speed control servo nipple. See Fig 2.
Connect and Lock the electrical connector to the speed control servo. See Figure.

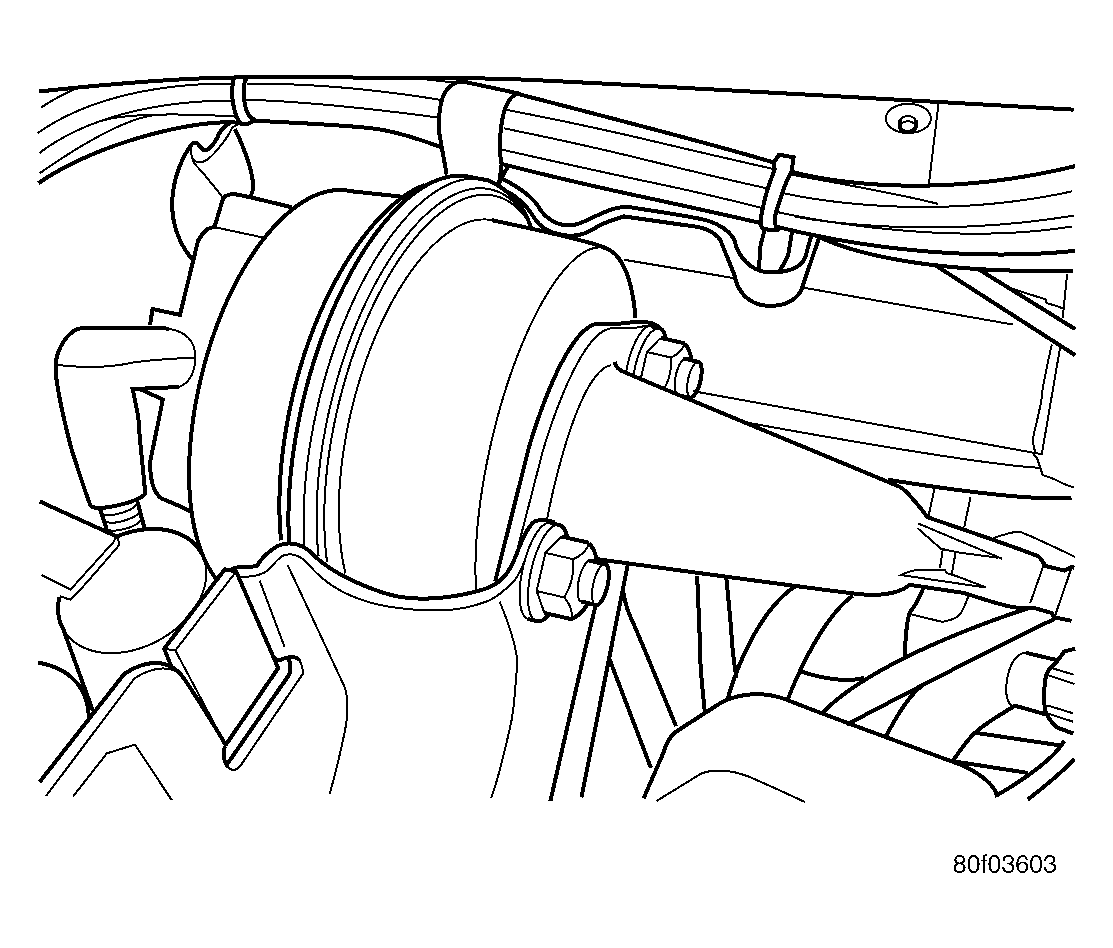

Fig 3: Speed Control Servo - 2.4L Turbo
Courtesy of CHRYSLER LLC
Install the speed control servo to the mounting bracket.
Install the 2 nuts to the speed control servo studs and tighten to 7 N.m (60 in. lbs.). See Fig 4.

Fig 4: Locating Retaining Tabs On Cables
Courtesy of CHRYSLER LLC
Install speed control cable to throttle cable bracket. See Figure.
Install the speed control cable to the throttle body lever.

Fig 5: Throttle Control Shield - 2.4L Turbo
Courtesy of CHRYSLER LLC
Install the throttle control shield. See Fig 5.

Fig 6: Identifying Battery Negative Cable
Courtesy of CHRYSLER LLC
Connect the negative battery cable.
