Fuse/Relay Block

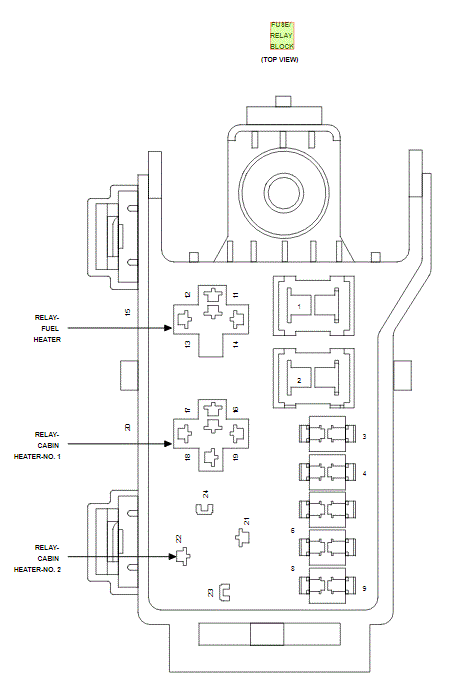

Fig 1: Identifying Fuse/Relay Block Relays (Diesel)
G00565833Courtesy of CHRYSLER CORP.
FUSE/RELAY BLOCK RELAY IDENTIFICATION (DIESEL)

RELAY DESCRIPTION
Fuel Heater Relay
Cabin Heater No. 1 Relay
Cabin Heater No. 2 Relay
