Check And Adjust Rear Axle Toe

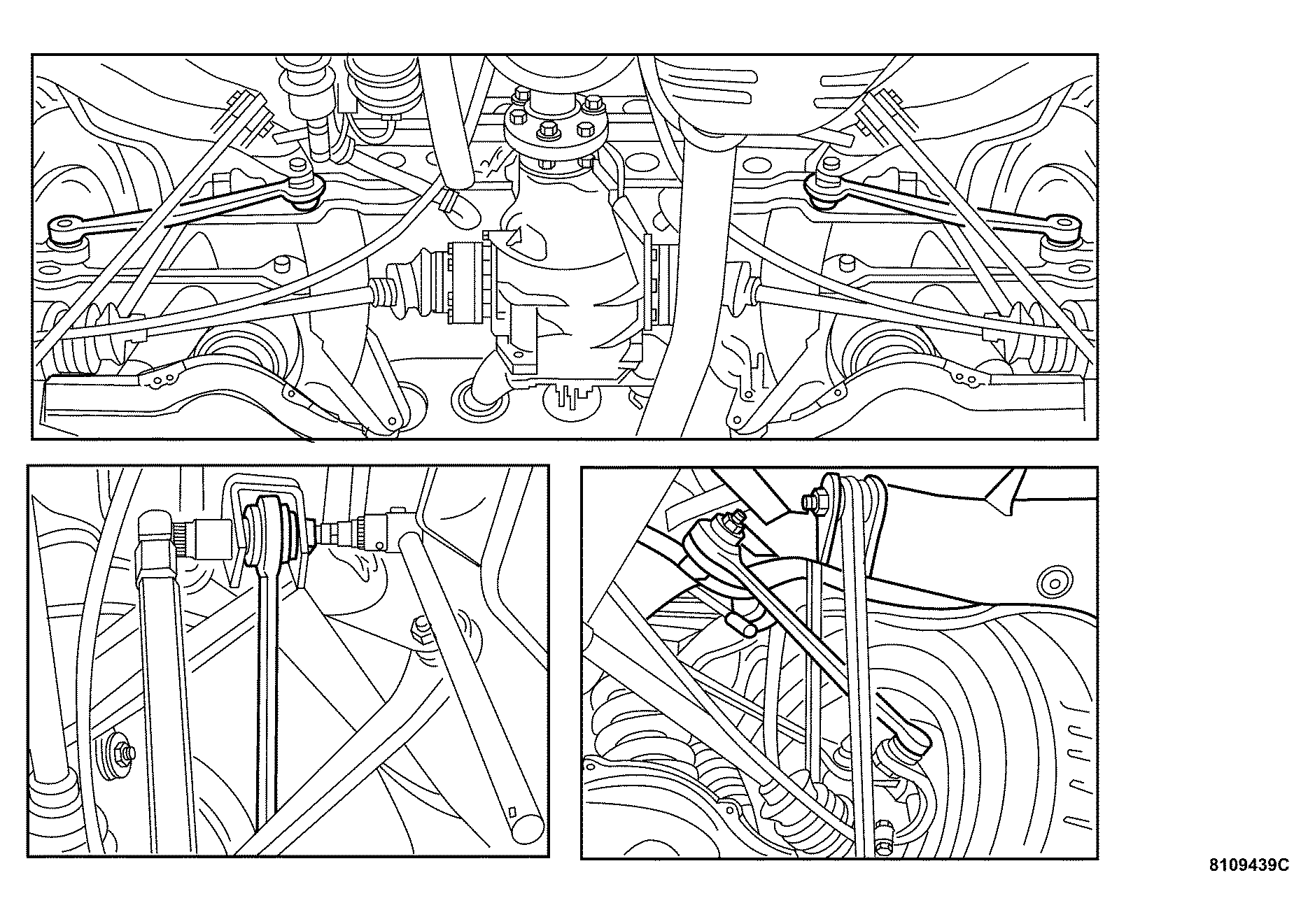

Fig 1: Locating Cam Bolts For Adjusting Rear Axle Toe
GC0033635Courtesy of CHRYSLER LLC
  1. Check the vehicle level at the front and rear axles and adjust if necessary. See STANDARD PROCEDURE .
  2. Check the vehicle level at the front and rear axles with an electronic inclinometer and adjust if necessary. See STANDARD PROCEDURE .
  3. Adjust the toe with the cam bolt on the mounting of the left and right tie rod on rear axle carrier.
