4BEF-Dynamics Sensor Supply Circuit Performance: Notes
WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

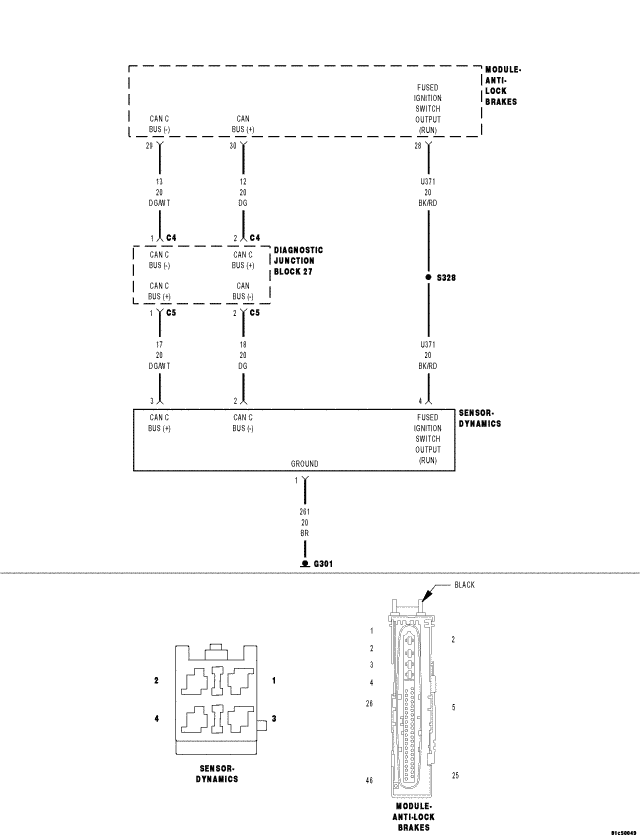

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.
- When Monitored:
With the ignition on.
- Set Condition:
When the Anti-Lock Brake Module detects supply circuit performance with the Dynamics Sensor.
| Possible Causes |
|---|
| TERMINAL/CONNECTOR/WIRING HARNESS DAMAGE |
| FUSED IGNITION SWITCH OUTPUT OPEN |
| DYNAMICS SENSOR |
| GROUND CIRCUIT |
