ARM, Lower Control: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

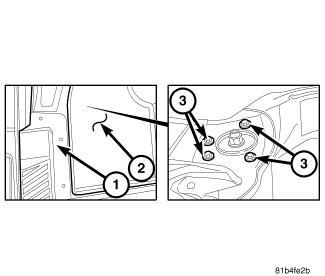

Fig 1: UPPER BOLTS
GC0133695Courtesy of CHRYSLER LLC
  1. Remove the floor pan screws (1).
  2. Remove the upper strut mounting bolts (3).

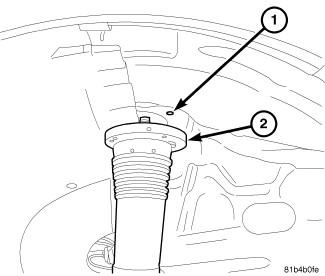

    Fig 2: INNER FENDER WELL
    GC0133696Courtesy of CHRYSLER LLC
  3. Raise and support the vehicle.
  4. Remove the front wheels. Refer to Tires and Wheels/Wheels - Removal .
  5. Remove the rear half of the wheel well liner to allow the strut (2) to be removed.

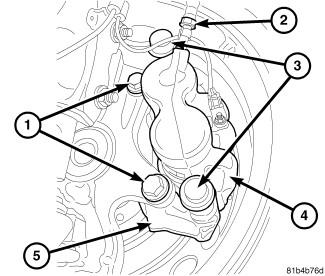

    Fig 3: CALIPER
    GC0133697Courtesy of CHRYSLER LLC
  6. Remove the wheel sensor wire from the routing clip.
  7. Remove the disc brake caliper adapter (1). Refer to Brakes/Hydraulic/Mechanical/ADAPTER, Disc Brake Caliper - Removal .Hang the caliper (4). Do not allow brake hose to support the caliper weight.

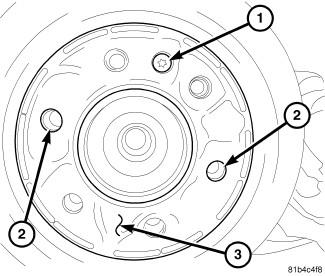

    Fig 4: DISC BRAKE ROTOR
    GC0133698Courtesy of CHRYSLER LLC
  8. Remove the rotor set screw (1) and the rotor (3) from the hub/bearing.

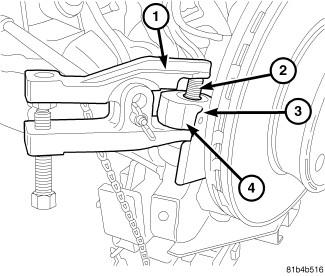

    Fig 5: TIE ROD SEPARATION
    GC0133699Courtesy of CHRYSLER LLC
  9. Remove the retaining nut holding the tie rod (2) to the steering knuckle (4).
  10. Separate the tie rod (2) off the steering knuckle (4) using special tool 9360 (1).

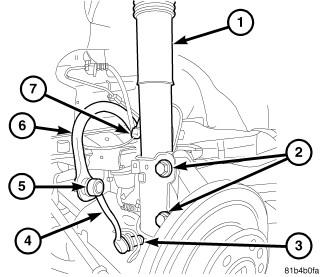

    Fig 6: STRUT
    GC0133688Courtesy of CHRYSLER LLC
  11. Remove the lower bolts (2) from the knuckle.
  12. Remove the strut (1) from the steering knuckle.

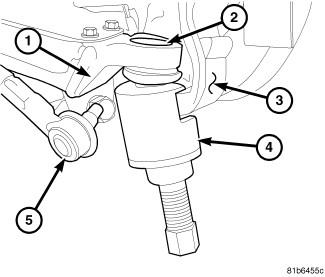

    Fig 7: BALL JOINT SEPARATION
    GC0133700Courtesy of CHRYSLER LLC
  13. Remove the lower ball joint nut from the steering knuckle.
  14. Separate the lower ball joint from the knuckle using special tool 9282.

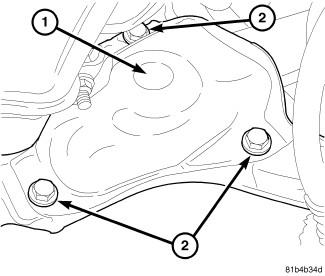

    Fig 8: UPPER SPRING PLATE
    GC0133701Courtesy of CHRYSLER LLC
  15. Remove the spring stop plate bolts (2) and rotate the plate (1) upwards with the stabilizer link attached. See Removal  .

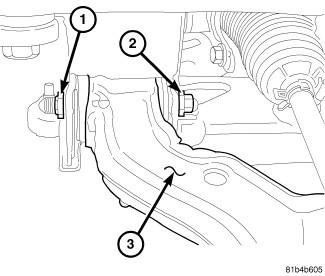

    Fig 9: PIVOT BOLTS
    GC0133702Courtesy of CHRYSLER LLC
  16. Remove the lower control arm pivot nuts (1) and bolts (2) from the frame.
  17. Remove the lower control arm (3).
