4290-Rpm Sensor Circuit High: Notes

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

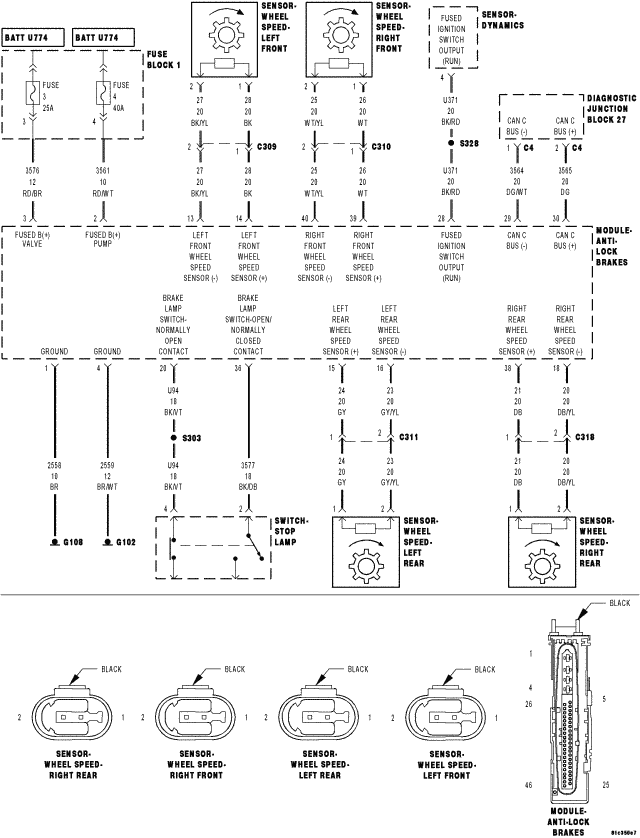

Fig 1: ABS/ESP Control, WSS And RPM Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:
With the ignition on.
Set Condition:
When the Wheel Speed Sensor (WSS) is shorted to B(+).

Possible Causes
FRONT LEFT WSS
FRONT RIGHT WSS
REAR LEFT WSS
REAR RIGHT WSS
ANTI-LOCK BRAKE MODULE
