Stabilizer Bar

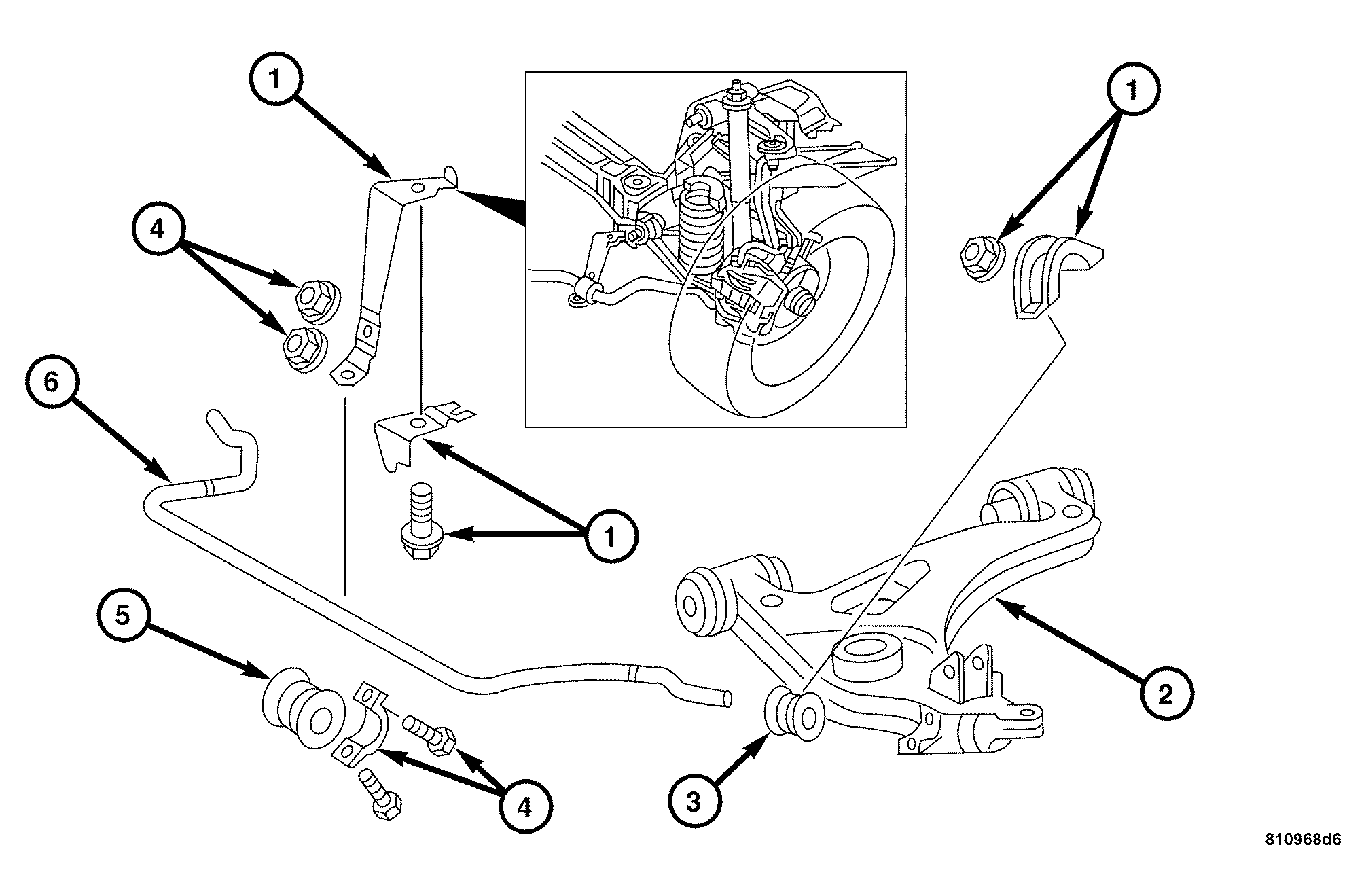

Fig 1: Identifying Stabilizer Bar Components
GC0033654Courtesy of CHRYSLER LLC
  1. Install both right and left stabilizer bar bushings (3 and 5) onto the stabilizer bar (6).

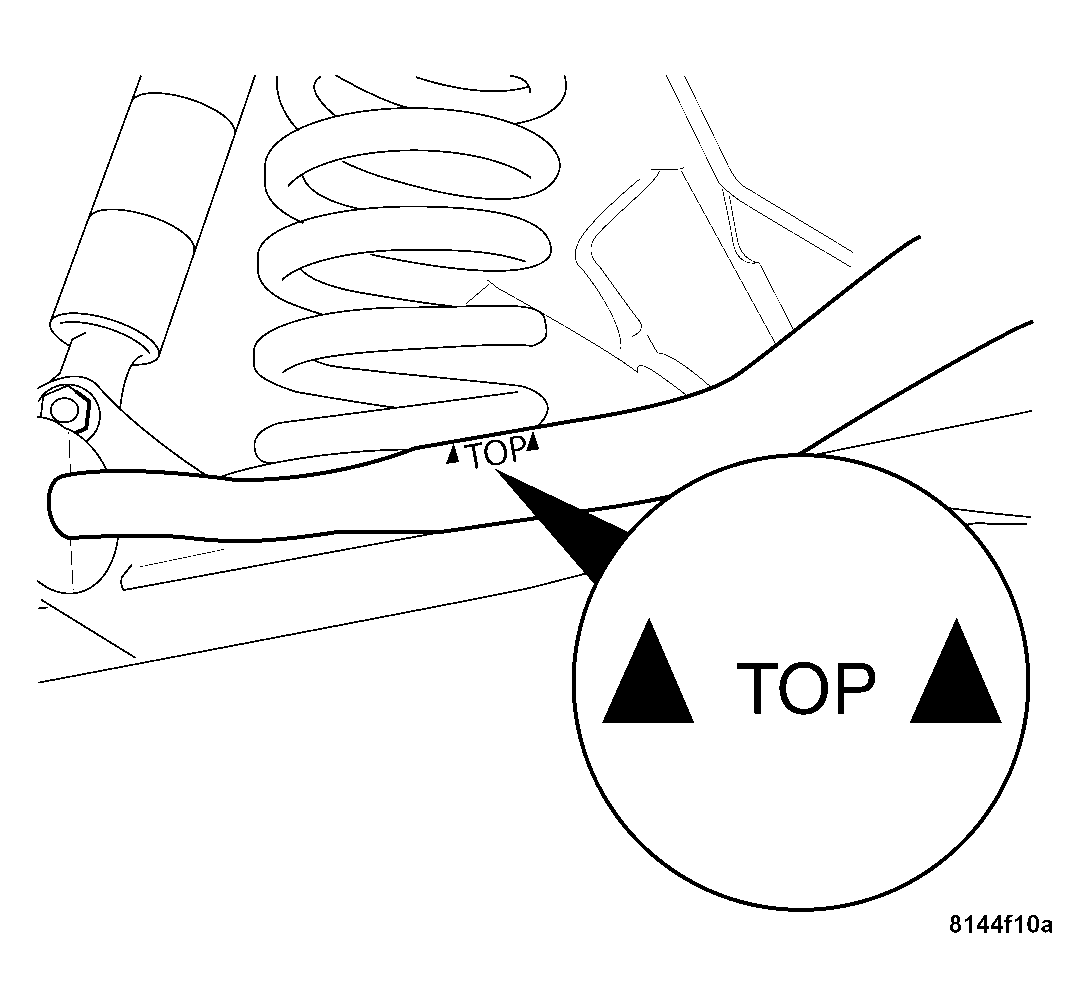

    Fig 2: Installing Stabilizer Bar
    GC0047874Courtesy of CHRYSLER LLC
    NOTE: The lower control arms (2) may need to be raised to accept the stabilizer bar bushing (2) to its mating surface.
  2. Install the stabilizer bar (6) to the vehicle by loosely installing the bolts and nuts to all four brackets (1 and 4) making sure that the arrows and the word "TOP" on the right side of the stabilizer bar (6) are properly oriented.
  3. Align the stabilizer bar (6) so it is centered in the vehicle.
  4. Tighten the stabilizer bar bolts (4) to the inner retainer brackets. Tighten to 20 N.m (15 ft. lbs.).
  5. Tighten both right and left stabilizer bar bracket nuts to the lower control arm (2). Tighten to 20 N.m (15 ft. lbs.).
  6. Lower the vehicle and check vehicle alignment. See STANDARD PROCEDURE .
