Front End Severe Head-On Collision SRS Operation

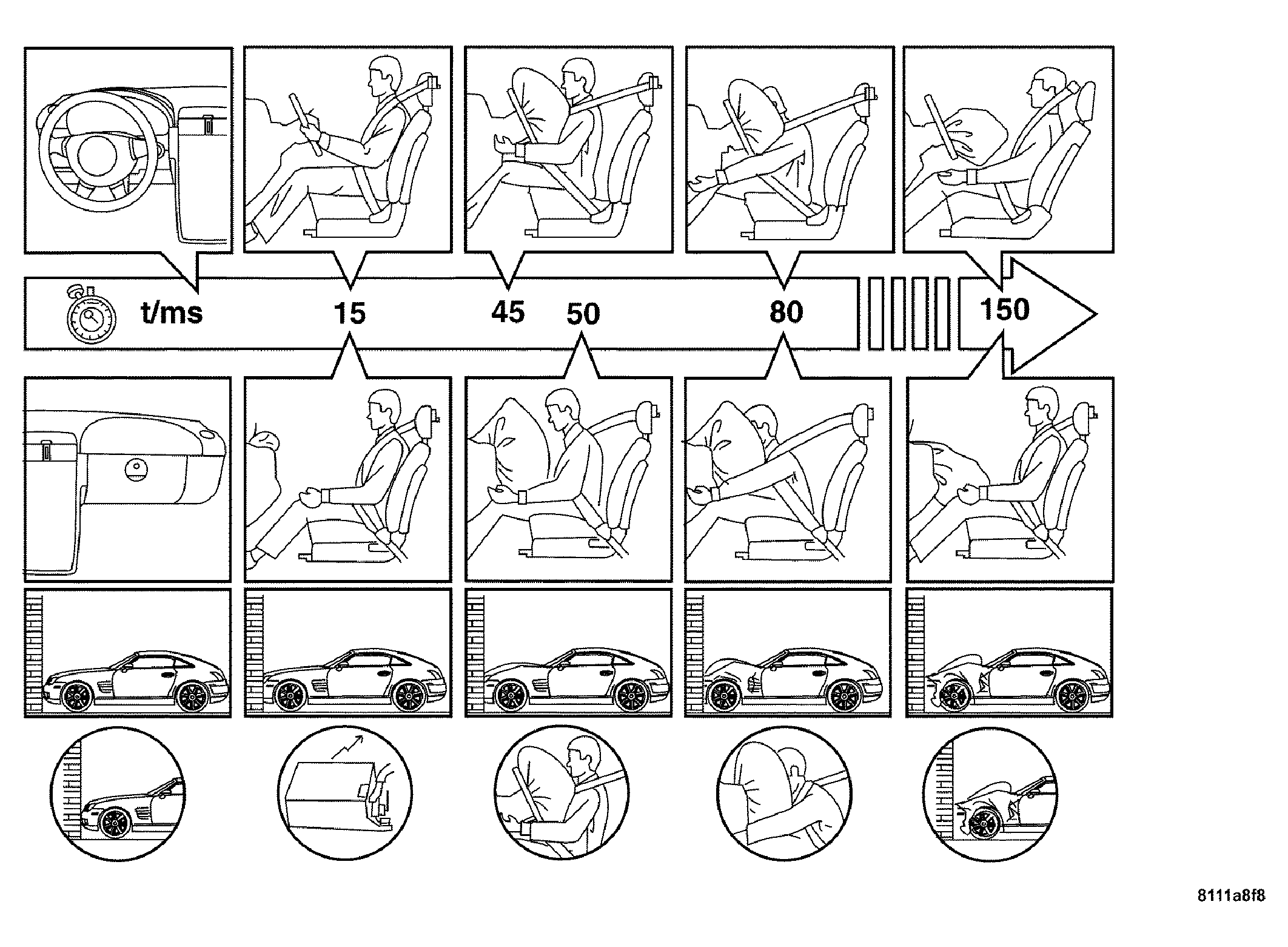

Fig 1: Front End Severe Head-On Collision SRS Operation

Courtesy of CHRYSLER LLC

"Stage two threshold" The ORC recognizes the vehicles rapid deceleration due to a collision. The ORC routes the triggering pulse to the driver and passenger airbag squibs. At the same time the driver and passenger SBTs are also triggered.
