Removal - Left Side

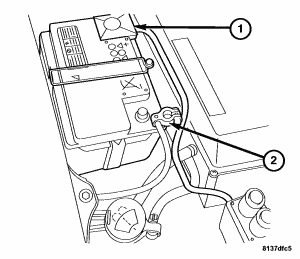

Fig 1: Locating Positive And Negative Battery Cables

Courtesy of CHRYSLER LLC

Disconnect and isolate the battery negative cable (2).
Raise and support the vehicle.
WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, personal injury or death.

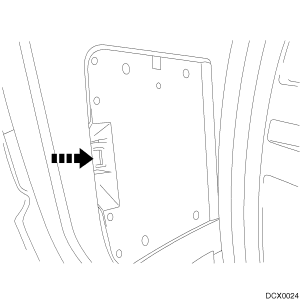

Fig 2: Locating Access Panel
Courtesy of CHRYSLER LLC
Open the access panel in the inner fender well.
Disconnect the front impact sensor electrical connector.

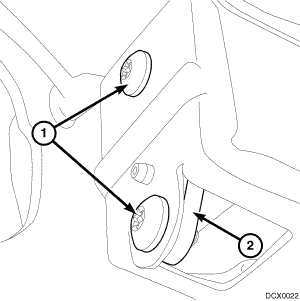

Fig 3: Locating Mounting Screws And Front Impact Sensor
Courtesy of CHRYSLER LLC
Remove the two mounting screws (1).
Remove the front impact sensor (2).
