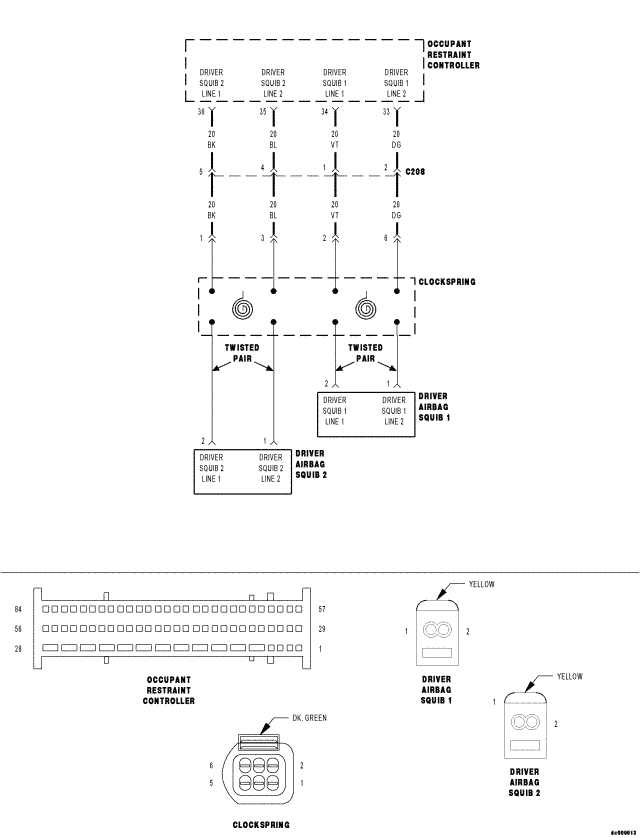

Home >> Chrysler >> 2007 >> Crossfire Base, 2D Convertible >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> DTCS B10FC To B1141 >> B1101-Orc-Driver Squib 1 Circuit High [ZH] >> Circuit Schematic
