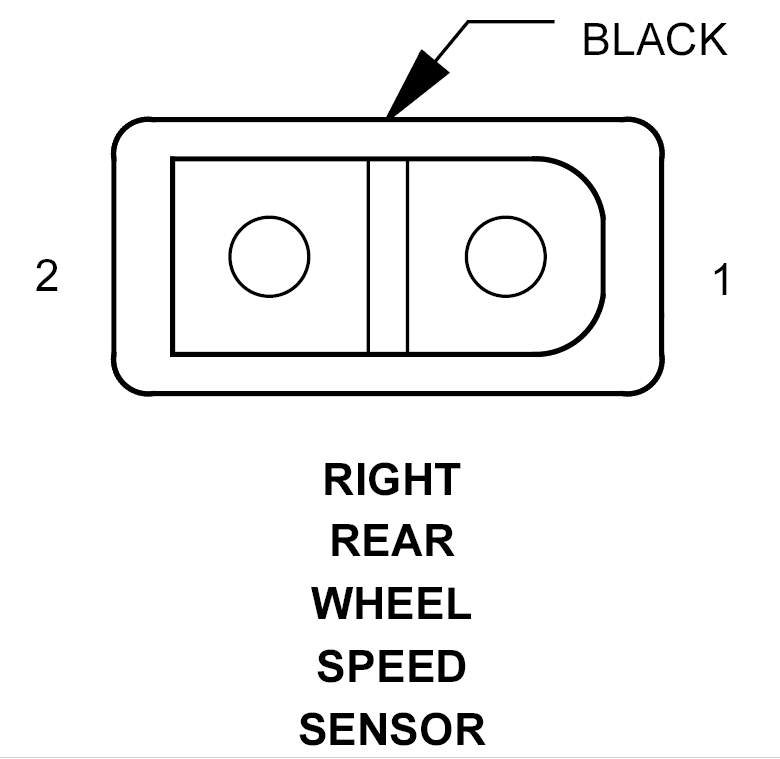

Right Rear Wheel Speed Sensor Connector End View

RIGHT REAR WHEEL SPEED SENSOR - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20YL	RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2	20BR	RIGHT REAR WHEEL SPEED SENSOR SIGNAL
