Recirculated Air Switchover Valve Connector End View

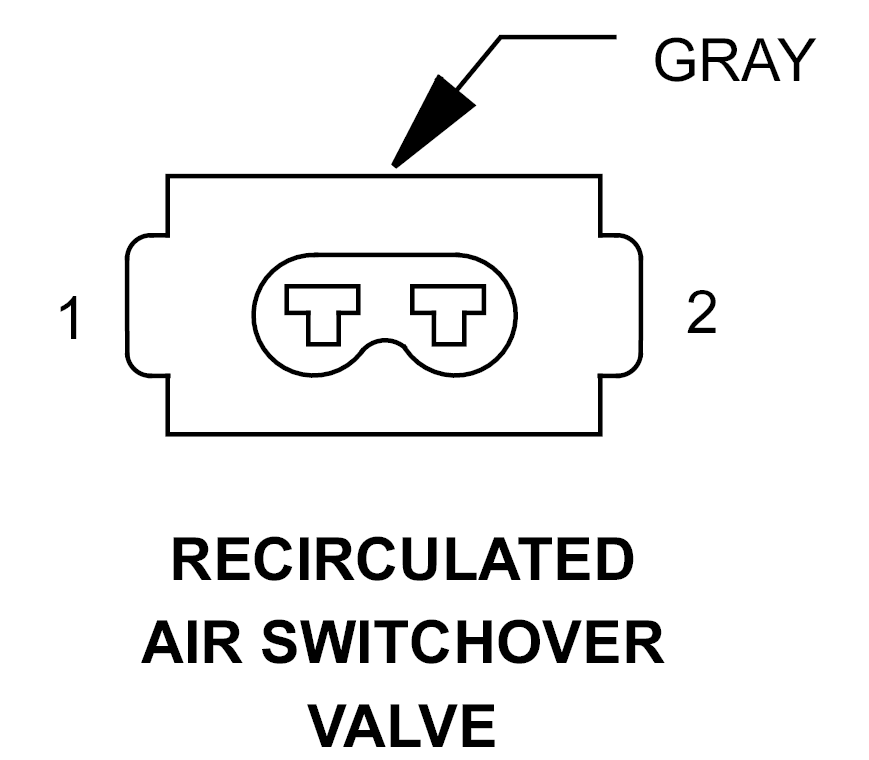

RECIRCULATED AIR SWITCHOVER VALVE - GRAY 2-WAY

GZH780207Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR/YL RECIRCULATED AIR SWITCHOVER VALVE CONTROL
2 18PK/RD/BL FUSED IGNITION SWITCH OUTPUT
