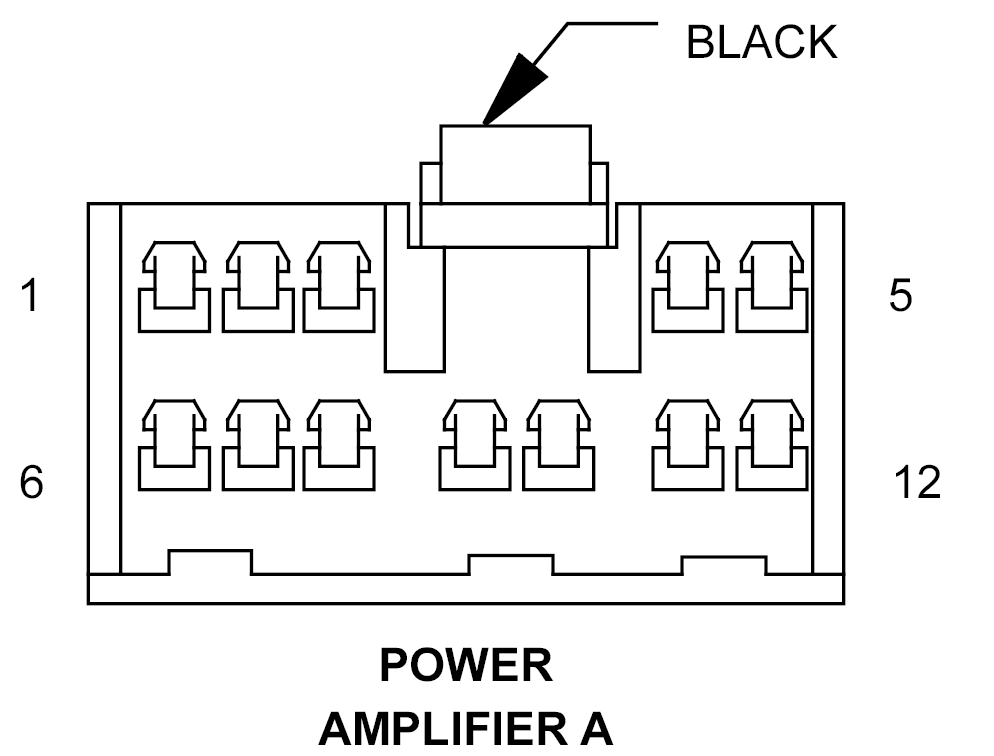

Power Amplifier A Connector End View
POWER AMPLIFIER A - BLACK 12-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | 18BL | RIGHT DOOR SPEAKER (-) |
| 2 | 18BL/BR | LEFT DOOR SPEAKER (+) |
| 3 | 18BL/BR | LEFT DOOR SPEAKER (+) |
| 4 | 16BR | GROUND |
| 5 | 18BL/DG | ENABLE SIGNAL TO AMPLIFIER |
| 6 | 18YL/VT | LEFT REAR SPEAKER (+) |
| 7 | 18YL | RIGHT REAR SPEAKER (-) |
| 8 | 18BL | RIGHT DOOR SPEAKER (-) |
| 9 | 18YL/VT | LEFT REAR SPEAKER (+) |
| 10 | 18YL | RIGHT REAR SPEAKER (-) |
| 11 | 16BR | GROUND |
| 12 | - | - |
