Manifold Absolute Pressure Sensor Connector End View

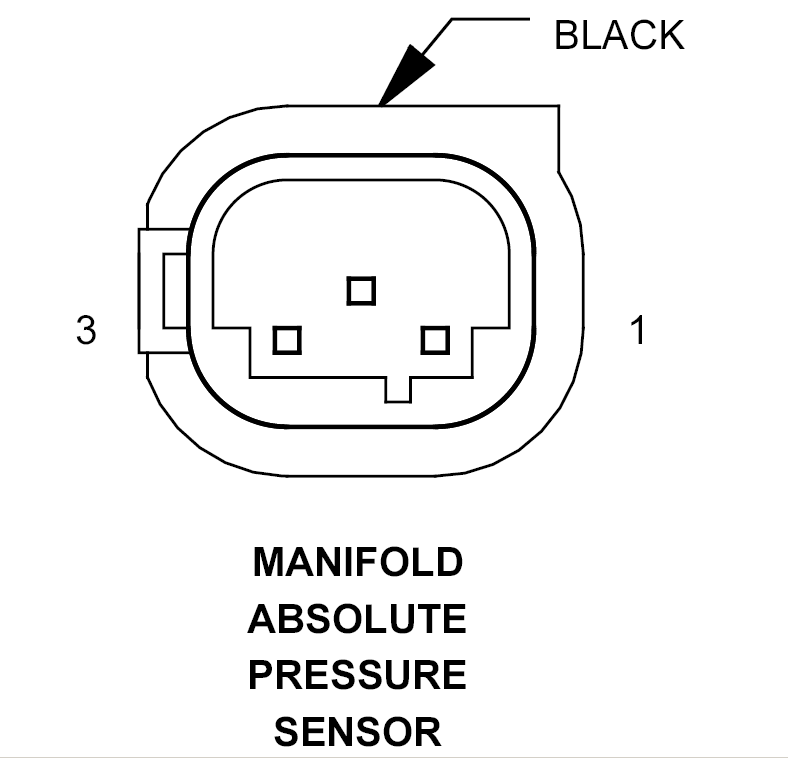

MANIFOLD ABSOLUTE PRESSURE SENSOR - BLACK 3-WAY

GZH780165Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR/GY SENSOR GROUND
2 20RD/DG MAP SENSOR SIGNAL
3 20PK/BK 5 VOLT SUPPLY
