Left Front Power Window Motor Connector End View

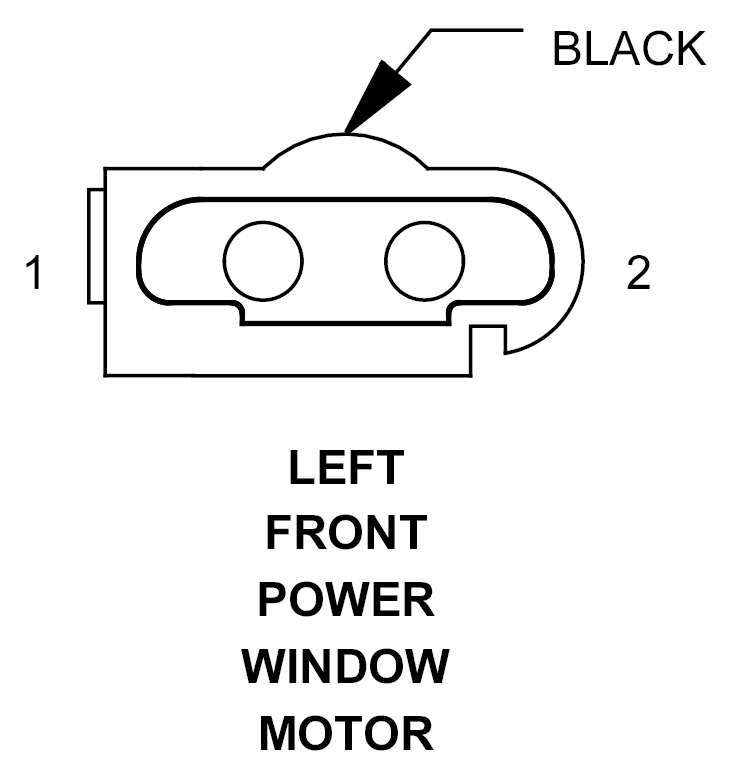

LEFT FRONT POWER WINDOW MOTOR - BLACK 2-WAY

GZH780144Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 14DG LEFT FRONT POWER WINDOW DRIVER (UP)
2 14BK LEFT FRONT POWER WINDOW DRIVER (DOWN)
