Left Door Tweeter Connector End View

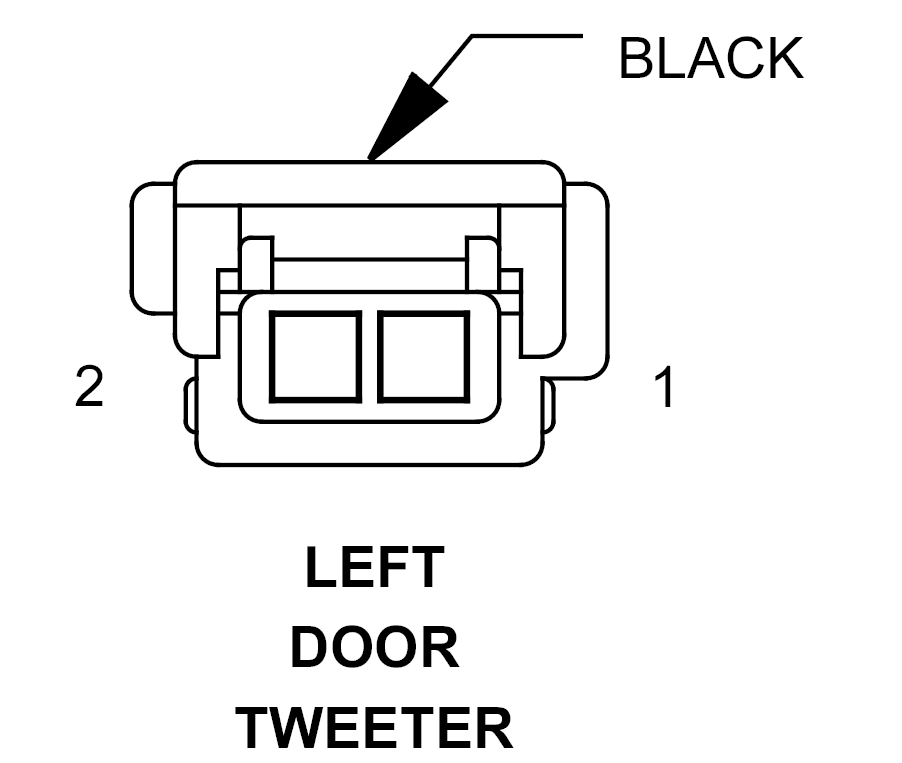

LEFT DOOR TWEETER - BLACK 2-WAY

GZH780141Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR/DG AMPLIFIED LEFT DOOR SPEAKER (-)
2 18BK/BL AMPLIFIED LEFT DOOR SPEAKER (+)
