Fuel Injector 5 Connector End View

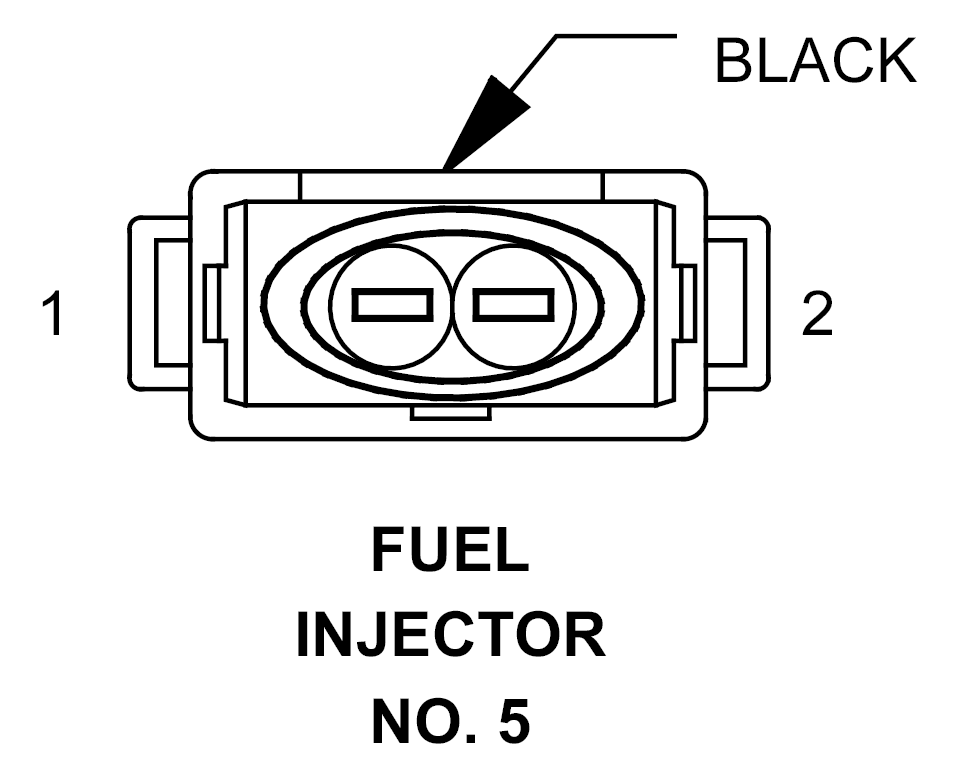

FUEL INJECTOR NO. 5 - BLACK 2-WAY

GZH780114Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18GY/YL FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/YL FUEL INJECTOR NO. 5 CONTROL
