Fuel Injector 4 Connector End View

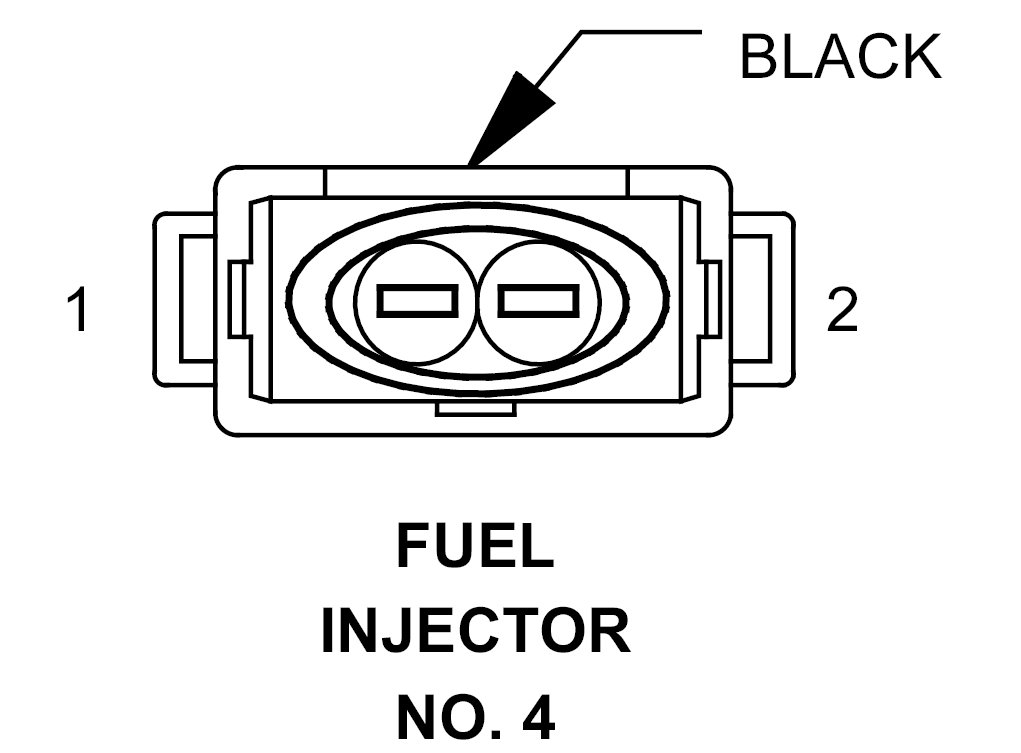

FUEL INJECTOR NO. 4 - BLACK 2-WAY

GZH780113Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18GY/BL FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/BL FUEL INJECTOR NO. 4 CONTROL
