Fuel Injector 2 Connector End View

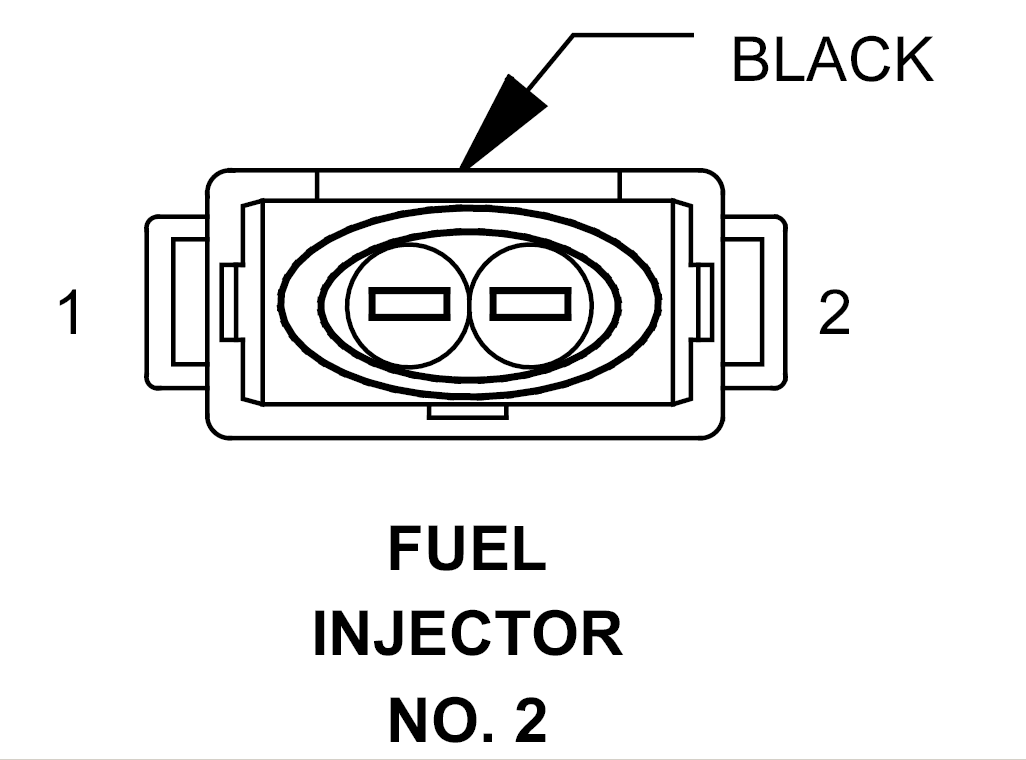

FUEL INJECTOR NO. 2 - BLACK 2-WAY

GZH780111Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18GY/RD FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/RD FUEL INJECTOR NO. 2 CONTROL
