Crankshaft Position Sensor Connector End View
Crankshaft Position Sensor Connector End View

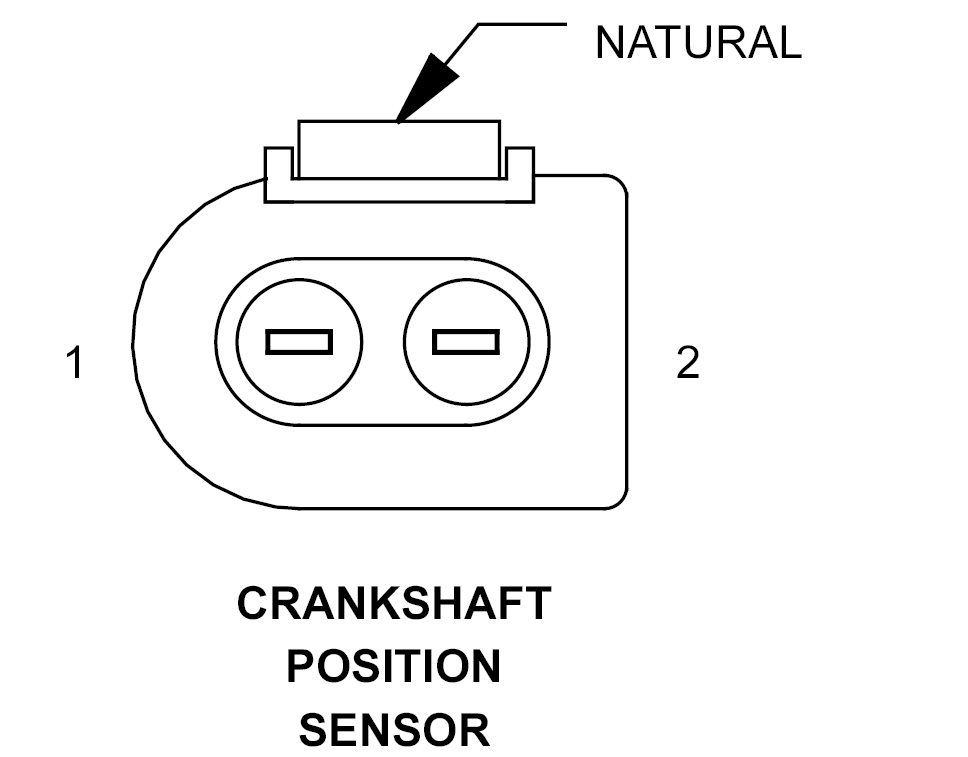

CRANKSHAFT POSITION SENSOR - NATURAL 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20DG
CRANKSHAFT POSITION SENSOR SIGNAL 2
2
20DG/WT
CRANKSHAFT POSITION SENSOR SIGNAL 1
Courtesy of CHRYSLER CORP.
