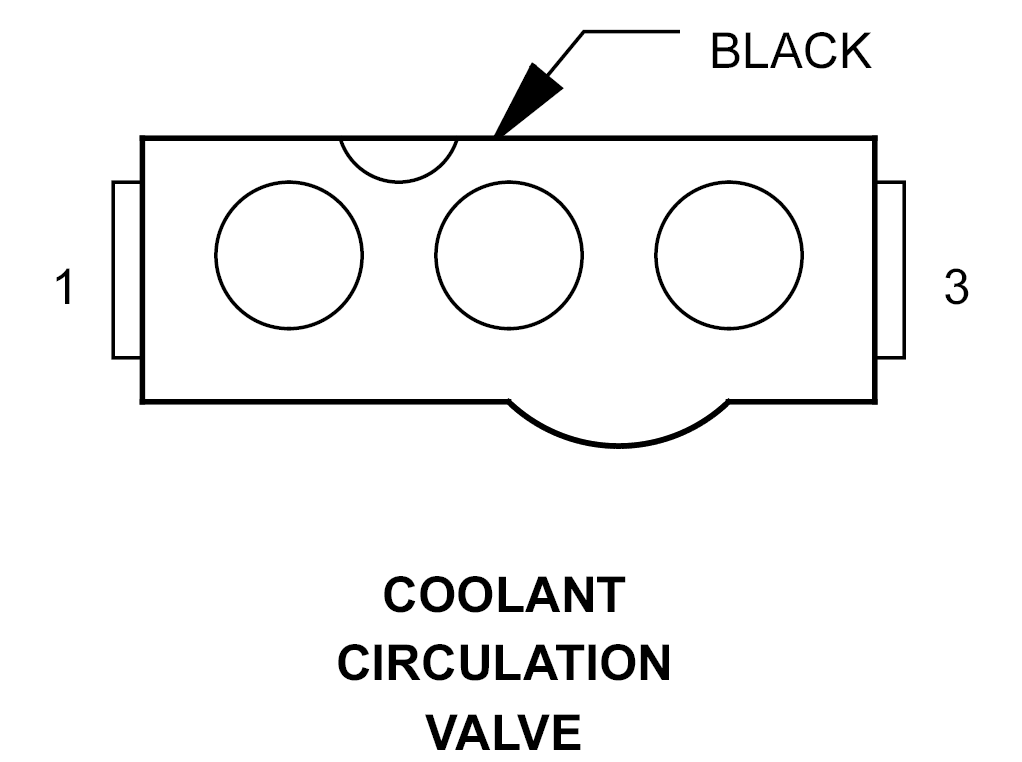

Coolant Circulation Valve Connector End View
COOLANT CIRCULATION VALVE - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR/VT |
LEFT COOLANT CIRCULATION VALVE CONTROL |
| 2 |
20RD/YL |
FUSED B(+) |
| 2 |
18RD/YL |
FUSED B(+) |
| 3 |
20BR/RD |
RIGHT COOLANT CIRCULATION VALVE CONTROL |
