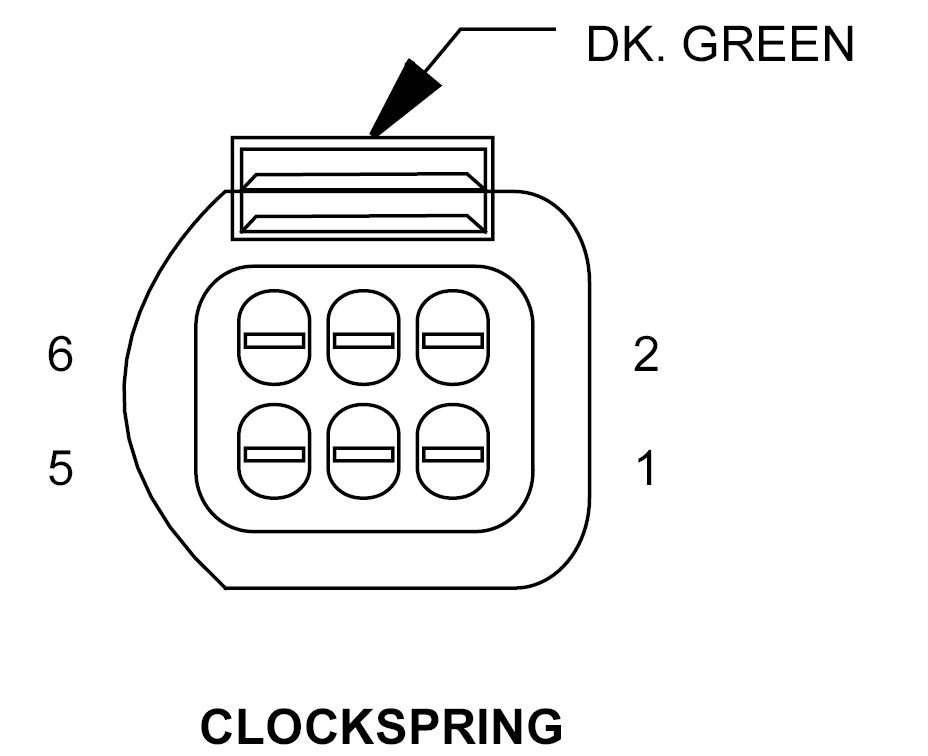

Clockspring Connector End View
CLOCKSPRING - DK. GREEN 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BK |
DRIVER SQUIB 2 LINE 1 |
| 2 |
20VT |
DRIVER SQUIB 1 LINE 1 |
| 3 |
20BL |
DRIVER SQUIB 2 LINE 2 |
| 4 |
20BR |
HORN GROUND |
| 5 |
20YL |
HORN RELAY CONTROL |
| 6 |
20DG |
DRIVER SQUIB 1 LINE 2 |
