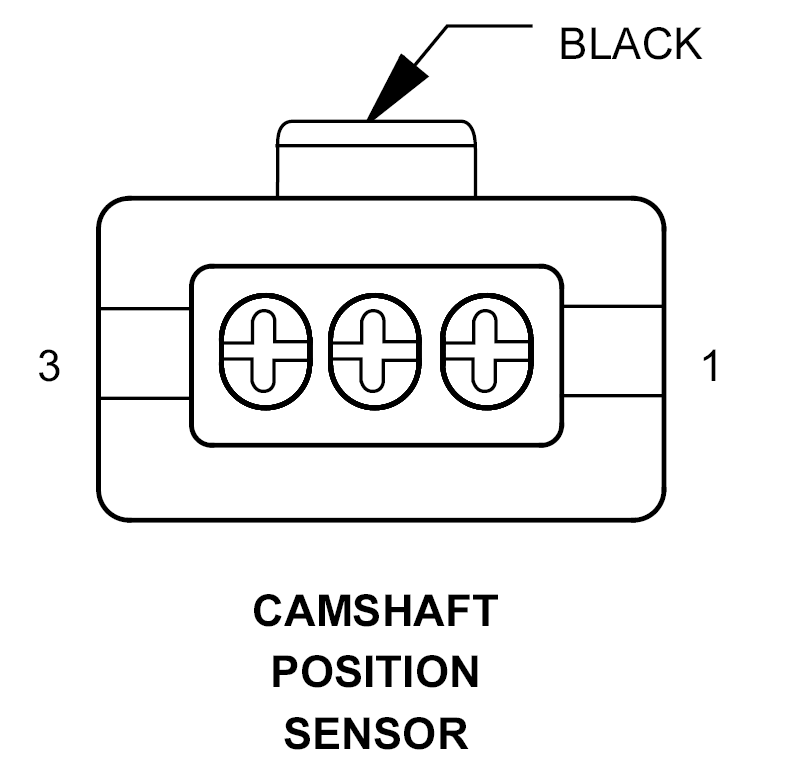

Camshaft Position Sensor Connector End View

CAMSHAFT POSITION SENSOR - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20BR/DG	SENSOR GROUND
2	20PK	CAMSHAFT POSITION SENSOR SIGNAL
3	20RD/BL	FUSED ENGINE CONTROL RELAY OUTPUT
