Backup Lamp Switch Connector End View
Backup Lamp Switch Connector End View

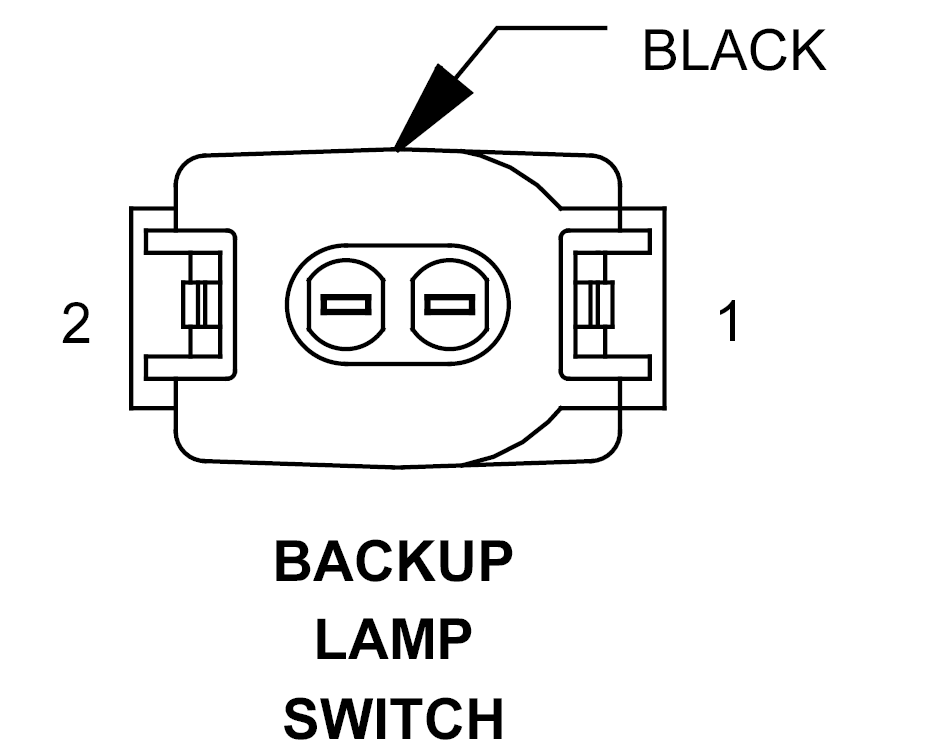

BACKUP LAMP SWITCH - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20PK/RD
FUSED IGNITION SWITCH OUTPUT
2
20GY/YL
BACKUP LAMP SWITCH OUTPUT
