Special Tools

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: #8936 Front Crankshaft Seal Installer

Courtesy of CHRYSLER LLC

Fig 2: #8937 Slide Hammer

Courtesy of CHRYSLER LLC

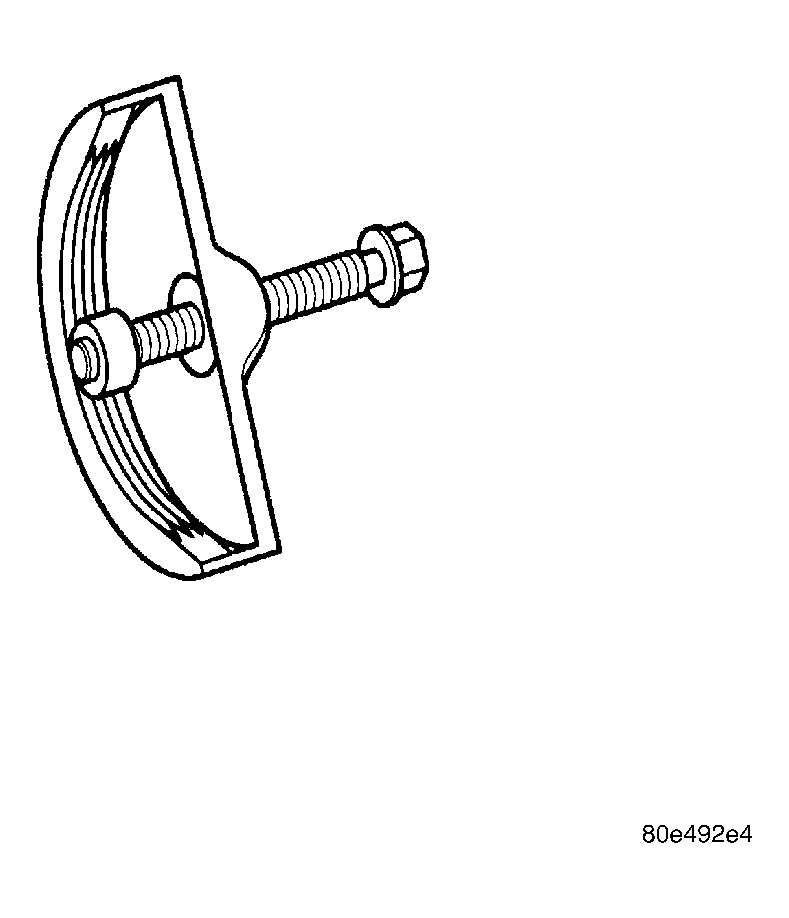

Fig 3: #8940 Vibration Damper Remover

Courtesy of CHRYSLER LLC

Fig 4: #8944 Rear Main Seal Installer

Courtesy of CHRYSLER LLC

Fig 5: Tool, Chain Separator-8948

Courtesy of CHRYSLER LLC

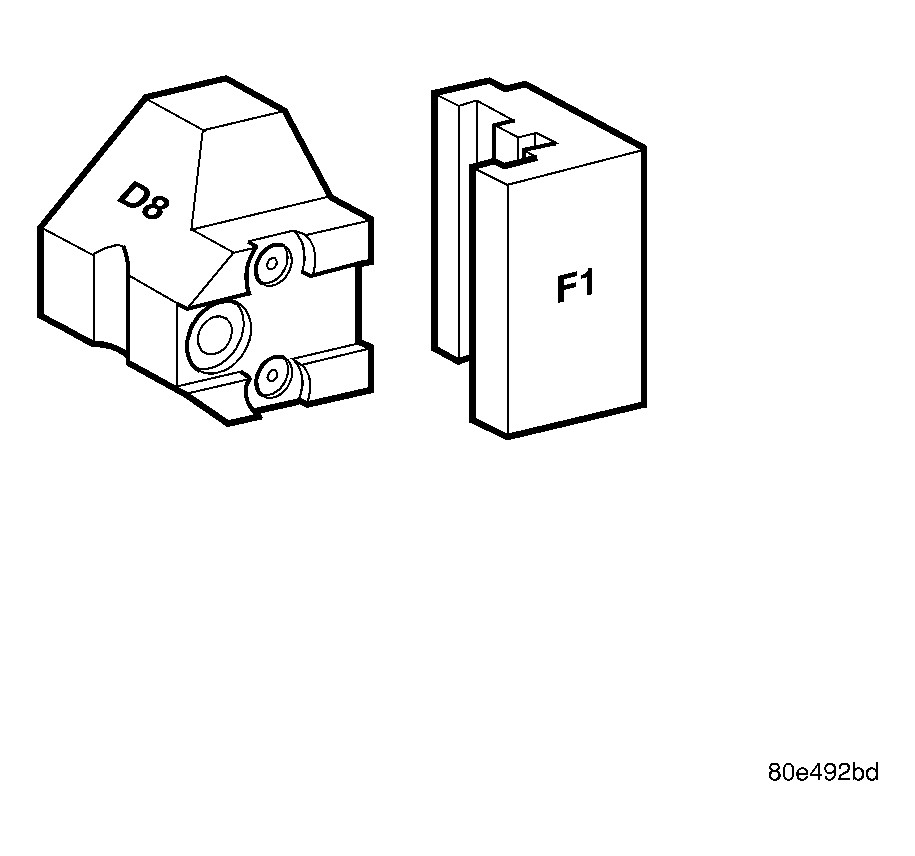

Fig 6: Piece, Thrust-8949A

Courtesy of CHRYSLER LLC

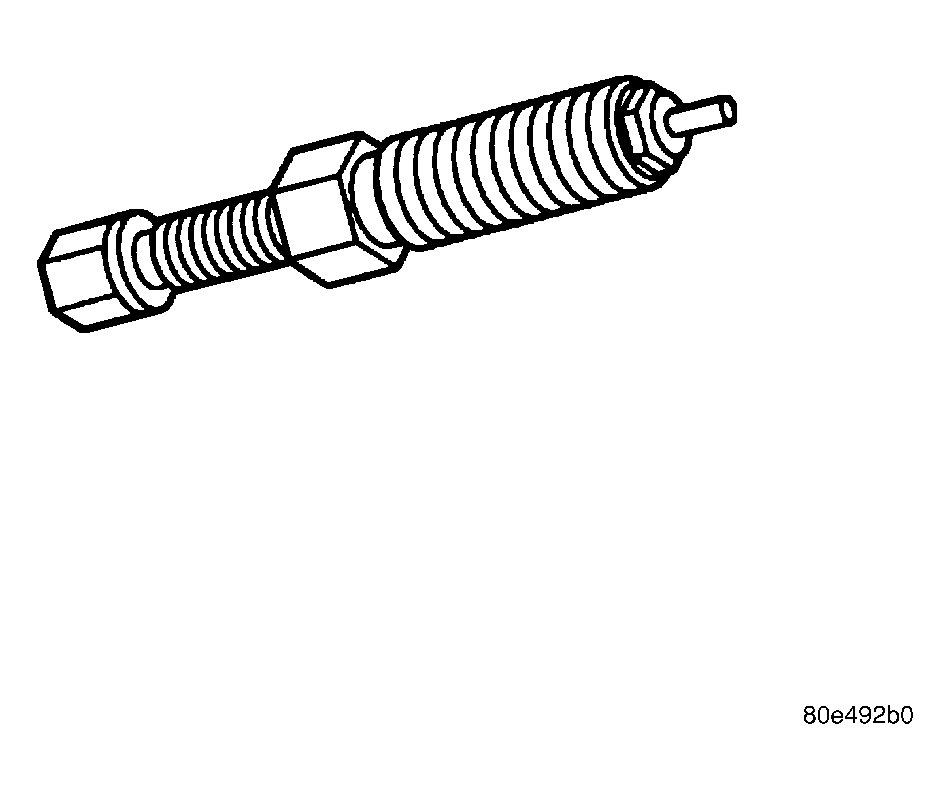

Fig 7: Screw, Pressing-8950

Courtesy of CHRYSLER LLC

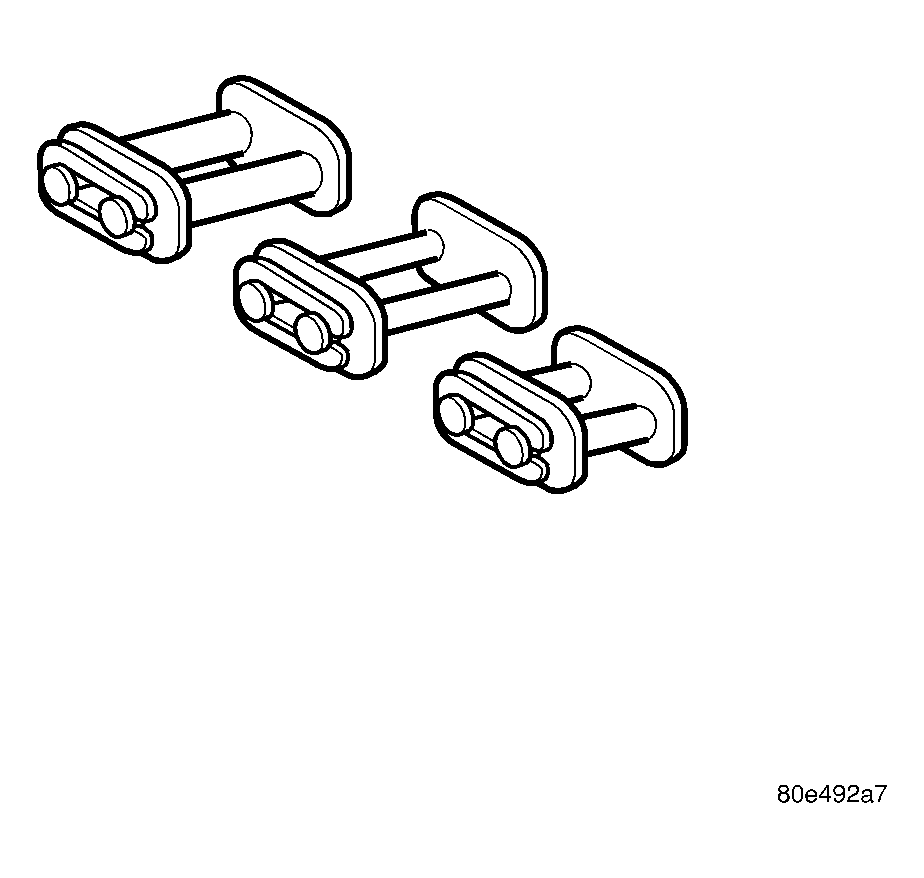

Fig 8: #8951 Assembly Links

Courtesy of CHRYSLER LLC

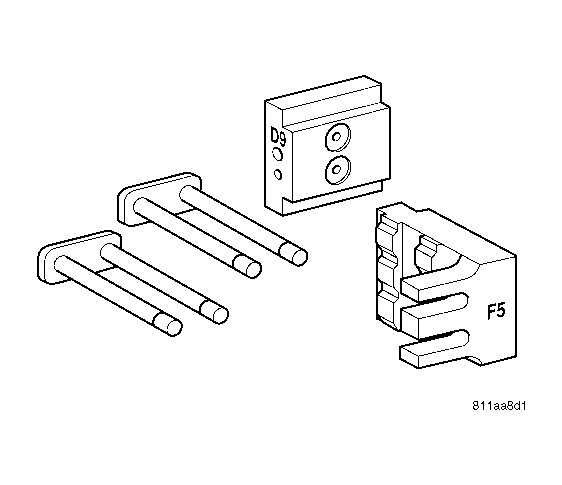

Fig 9: Inserts, Assembly-8952A

Courtesy of CHRYSLER LLC

Fig 10: Tool, Flywheel Locking-9102

Courtesy of CHRYSLER LLC

Fig 11: Fuel Line Pliers-9539

Courtesy of CHRYSLER LLC

Fig 12: #9543 Adaptor

Courtesy of CHRYSLER LLC

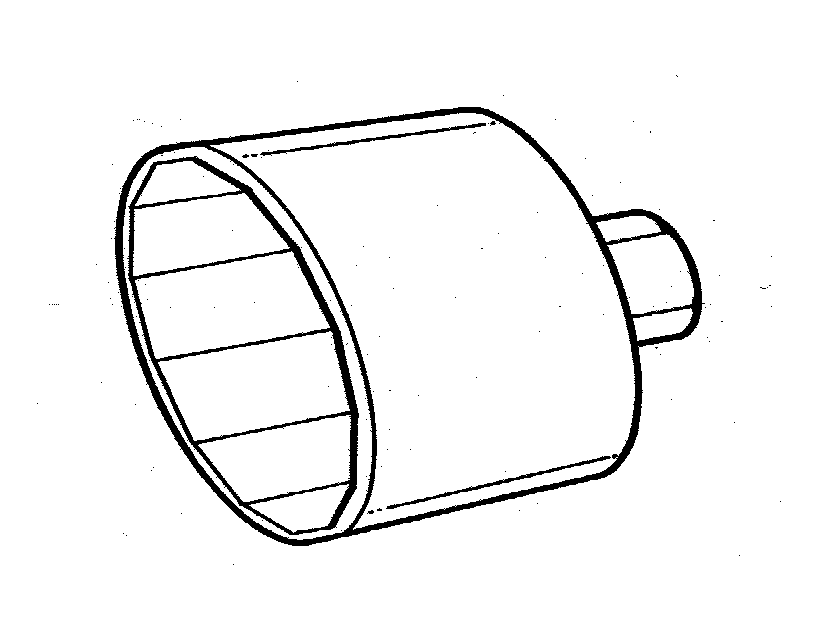

Fig 13: Wrench, Oil Filter Cap-9551

Courtesy of CHRYSLER LLC

Fig 14: Remover, Fuel Injector-9552

Courtesy of CHRYSLER LLC

Fig 15: Adapter, Compression Tester-9553

Courtesy of CHRYSLER LLC

Fig 16: Guide, Timing Chain-9554

Courtesy of CHRYSLER LLC

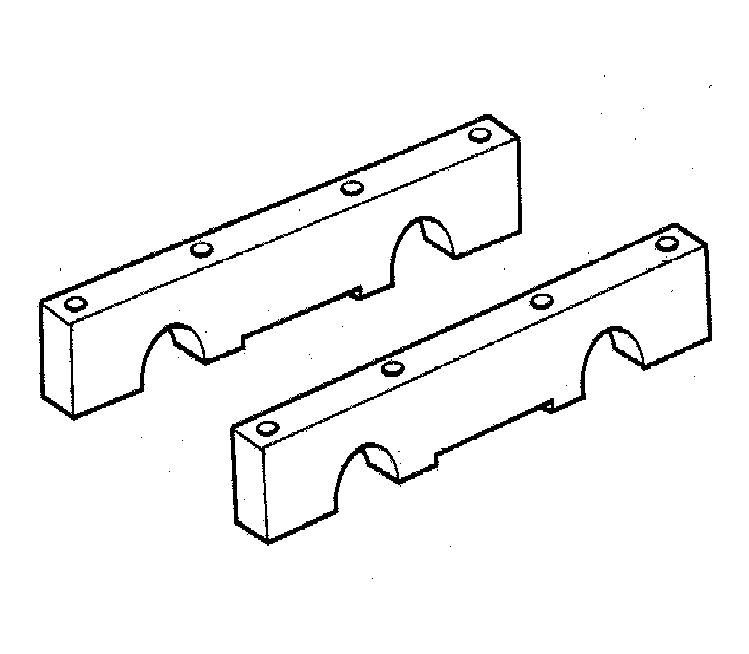

Fig 17: Retainer, Camshafts-9555

Courtesy of CHRYSLER LLC
