Timing Belt/Chain And Sprockets: Installation

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure is for setting the timing when the timing chain has been completely removed from the engine. To replace a stretched timing chain, use the roll through procedure.

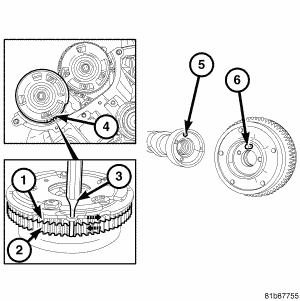

Fig 1: Installing The Camshaft Adjuster
GC0066211Courtesy of CHRYSLER LLC
  1. Make sure that the drift (3) is installed into the camshaft adjuster.
  2. Align the pin (5) with the hole in the end of the camshaft (6) to install the camshaft adjuster on the intake camshaft.
  3. When the camshaft is correctly aligned on the camshaft adjuster, the alignment marks on the back of the camshaft adjuster will be lined up and the camshaft will seat all of the way into the adjuster.
    Fig 2: Camshaft And Crankshaft Timing And TDC
    GC0066191Courtesy of CHRYSLER LLC
  4. Install the intake and exhaust camshafts into the cylinder head so that the horizontal alignment marks line up with the top edge of the cylinder head. (4) and the vertical alignment mark is pointed upwards (3).

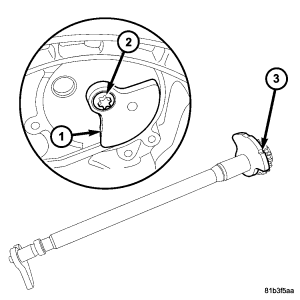

    Fig 3: Balance Shaft And Balance Weight
    GC0066248Courtesy of CHRYSLER LLC
  5. Align the slot in the balance shaft with the mark on the cylinder head (the mark is at about the 2 o'clock position).

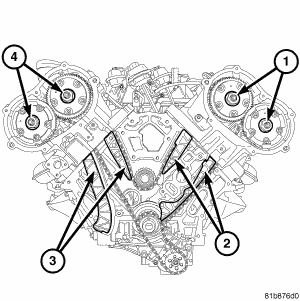

    Fig 4: Slide Rails
    GC0066247Courtesy of CHRYSLER LLC
  6. Replace any timing chain guides with excessive wear.
  7. Install all of the timing chain guides (1).
  8. Install the timing chain guide pins.
  9. Feed one end of the timing chain into the left cylinder head.
  10. Feed the timing chain through the engine and around the balance shaft.
  11. Draw the timing chain up through the right cylinder head and over the right cylinder head intake camshaft.
  12. Feed the chain down through the cylinder head to the crankshaft sprocket.
  13. Draw the timing chain up through the left cylinder head.

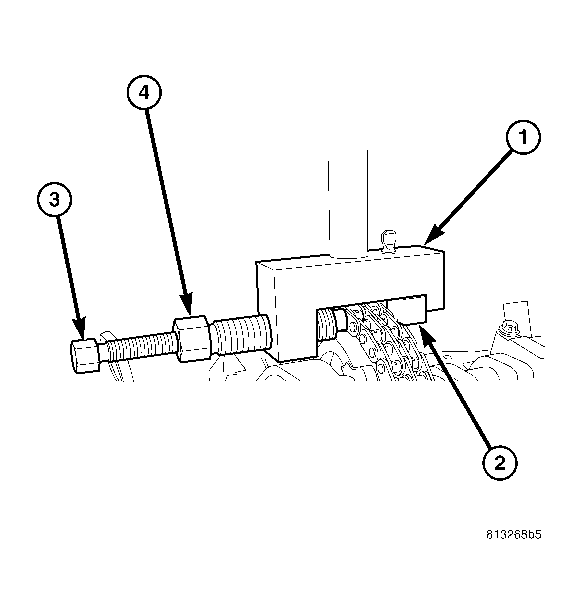

    Fig 5: Special Tool Components And Timing Chain
    GC0040624Courtesy of CHRYSLER LLC
    1 - SPECIAL TOOL #9312-1
    2 - SPECIAL TOOL #9312-13 - INSERT
    3 - SPECIAL TOOL #9312-3 - THRUST PIN
    4 - SPECIAL TOOL #9312-4 - SPINDLE
  14. Assemble the chain using a new link.

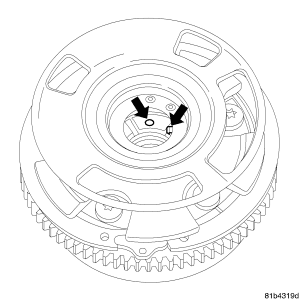

    Fig 6: Adjuster Pin Locations
    GC0066267Courtesy of CHRYSLER LLC
  15. Remove the drift from the left camshaft adjuster.
  16. Install a new camshaft timing wheel on the intake camshaft in the left cylinder head. Rotate the timing wheel until the wheel sits flush on the camshaft. There is a dimple in the camshaft and a matching dimple in the timing wheel. Make sure that the camshaft timing wheel dimples line up.
  17. Install the left camshaft adjuster center bolt finger tight.
  18. Remove the drift from the right camshaft adjuster.
  19. Install a new camshaft timing wheel on the intake camshaft in the right cylinder head. Rotate the timing wheel until the wheel sits flush on the camshaft. There is a dimple in the camshaft and a matching dimple in the timing wheel. Make sure that the camshaft timing wheel dimples line up.
  20. Install the right camshaft adjuster center bolt finger tight.
    Fig 7: Locating Number Stamp Visible Through The Camshaft Sensor Holes
    GC0066220Courtesy of CHRYSLER LLC
  21. Install the left cylinder head cover. See INSTALLATION .
  22. Install the left upper front cover.
  23. Install the right cylinder head cover. See INSTALLATION .
  24. Install the right upper front cover.
  25. If the camshafts are positioned correctly, the stamps on the timing wheels (3) will be visible through the camshaft position sensor holes.

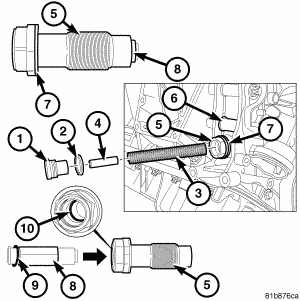

    Fig 8: Exploded View Of Timing Chain Tensioner
    GC0066201Courtesy of CHRYSLER LLC
  26. Install the front cover.
  27. Install the timing chain tensioner.

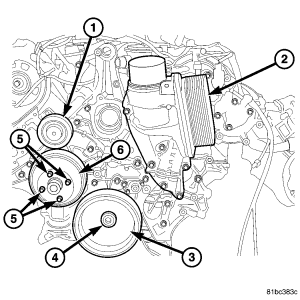

    Fig 9: Oil Filter/Cooler Housing, Idler Pulley, Vibration Damper Bolt And Crankshaft Damper
    GC0066246Courtesy of CHRYSLER LLC
  28. Install the crankshaft damper (3).
  29. Install the crankshaft damper bolt (4).
  30. Remove the crankshaft locking tool.

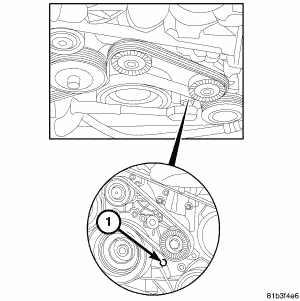

    Fig 10: Accessory Drive Belt Bolt
    GC0066190Courtesy of CHRYSLER LLC
  31. Install the accessory drive belt.
