Oil Separator: Installation

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

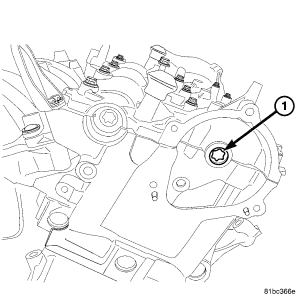

Fig 1: Oil Separator Removed
GC0066257Courtesy of CHRYSLER LLC
  1. Clean the oil separator gasket sealing surface to be sure it is free from oil or debris.

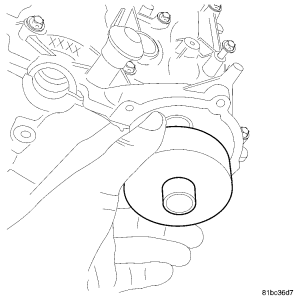

    Fig 2: Removing/Installing The Oil Separator Center Bolt
    GC0066218Courtesy of CHRYSLER LLC
  2. Install the oil separator.

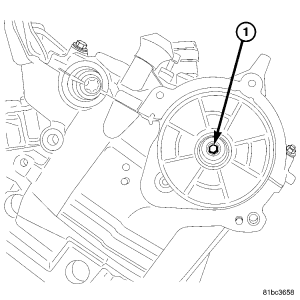

    Fig 3: Oil Separator Bolt
    GC0066219Courtesy of CHRYSLER LLC
  3. Install the oil separator center bolt. Tighten the bolt to 6 N.m (70 in. lbs) and then turn an additional 90 degrees.
  4. Make sure that the oil separator cover gasket is intact and in place, and install the oil separator cover.

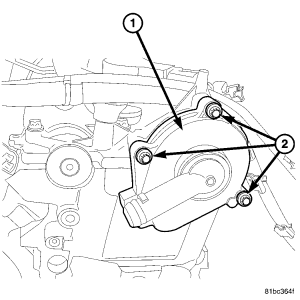

    Fig 4: Centrifugal Oil Separator Cover And Bolts
    GC0066217Courtesy of CHRYSLER LLC
  5. Install the oil separator cover bolts and tighten the bolts to 6 N.m (70 in. lbs) and then turn an additional 90 degrees.
