Engine Block: Crankshaft: Removal

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Remote Ground

Courtesy of CHRYSLER LLC

Disconnect the battery.
Raise the vehicle on the hoist.
Drain the coolant.
Drain the engine oil.

Fig 2: Engine Lift
Courtesy of CHRYSLER LLC
Remove the engine.

Fig 3: Flywheel
Courtesy of CHRYSLER LLC
Remove the flywheel.
Remove the rear main seal.

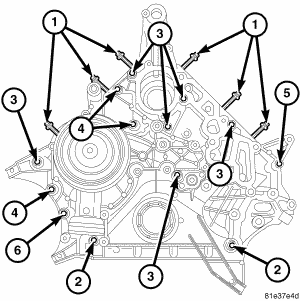

Fig 4: Engine Front Cover Bolts
Courtesy of CHRYSLER LLC
Remove the front engine cover.

Fig 5: Cylinder Head Components
Courtesy of CHRYSLER LLC
Remove the cylinder heads.

Fig 6: Upper Oil Pan Bolts
Courtesy of CHRYSLER LLC
Remove the lower oil pan.
Remove the upper oil pan.

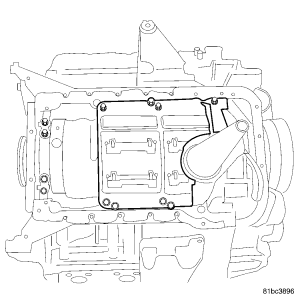

Fig 7: Windage Tray
Courtesy of CHRYSLER LLC
Remove the windage tray.

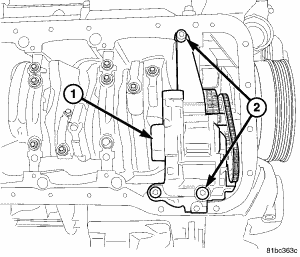

Fig 8: Oil Pump
Courtesy of CHRYSLER LLC
Remove the oil pump chain.
Remove the oil pump.

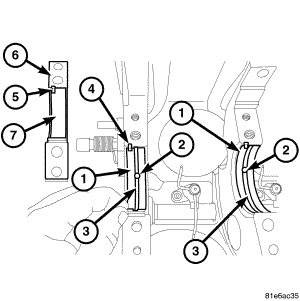

Fig 9: Front Cover Removed
Courtesy of CHRYSLER LLC
Disconnect the timing chain from the crankshaft.

Fig 10: Piston And Connecting Rod Components
Courtesy of CHRYSLER LLC
Use a grease pencil to mark the location of each connecting rod cap.
Remove the connecting rod caps.

Fig 11: Bearing Assembly
Courtesy of CHRYSLER LLC
Remove the oil jets.
Remove the pistons.

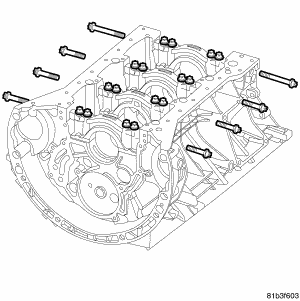

Fig 12: Crankshaft Main Bearing Caps
Courtesy of CHRYSLER LLC
Mark the location of the main bearing caps.
Remove the main bearing caps.
Remove the main bearings.
Remove the crankshaft.
