Element-Air Cleaner: Installation

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

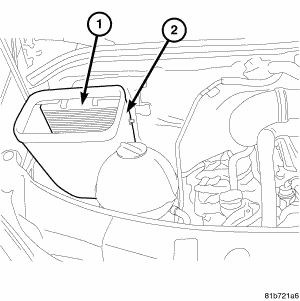

Fig 1: Air Filter Element And Air Box
GC0066188Courtesy of CHRYSLER LLC
  1. Install the air filter element (1) into air box (2).
  2. Seat cover onto element housing.
  3. Reconnect the air inlet tube and tighten clamp.
    Fig 2: Intake Air Housing
    GC0066163Courtesy of CHRYSLER LLC
  4. Position and install the intake air housing.
