Auxiliary Battery

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

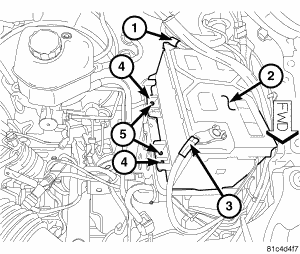

Fig 1: Auxiliary Battery Components
GC0065329Courtesy of CHRYSLER LLC
  1. Position the auxiliary battery (2) onto the battery tray at the left front engine compartment.
  2. Install the two retaining brackets (4) onto the battery tray.
  3. Install the retaining bracket fasteners (5).
  4. Connect the auxiliary battery positive cable (3).
  5. Connect the auxiliary battery negative cable (1).
